PART №1803

Centre-Console Cup Holder

ABS · PETGMULTI-PART3 FILESCC-BY-NCConsole & storage
SummaryREF 1803
PART
Centre-Console Cup Holder
OEM
FITS
C-Class W204 / S204 / C204
PartREV 2026

Loading 3D viewer...

Ref 18033 STL filesPrints without supports
Field photographs
4 PLATES
Plate 1 of 4
PLATE 01 / 04No caption recorded
Files & dimensions
MAN-1803
  • [01]can-sleeve-long.stl.STL
  • [02]can-sleeve-short.stl.STL
  • [03]cup-holder.stl.STL
  • [04]Bounding box137.497 × 105.060 × 78.920 mm
  • [05]Volume195,061.968 mm³
Field notes
BY SAMI

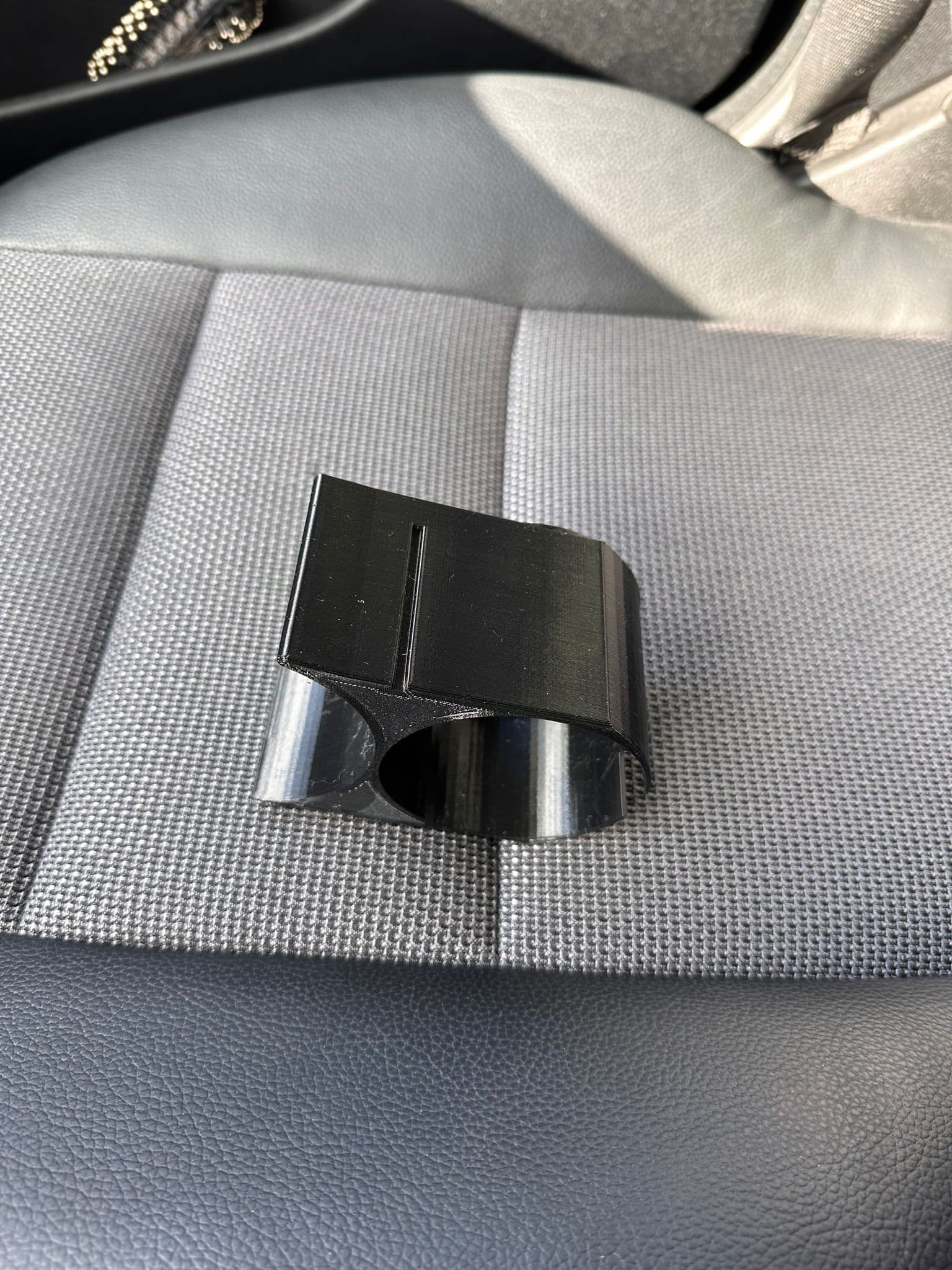

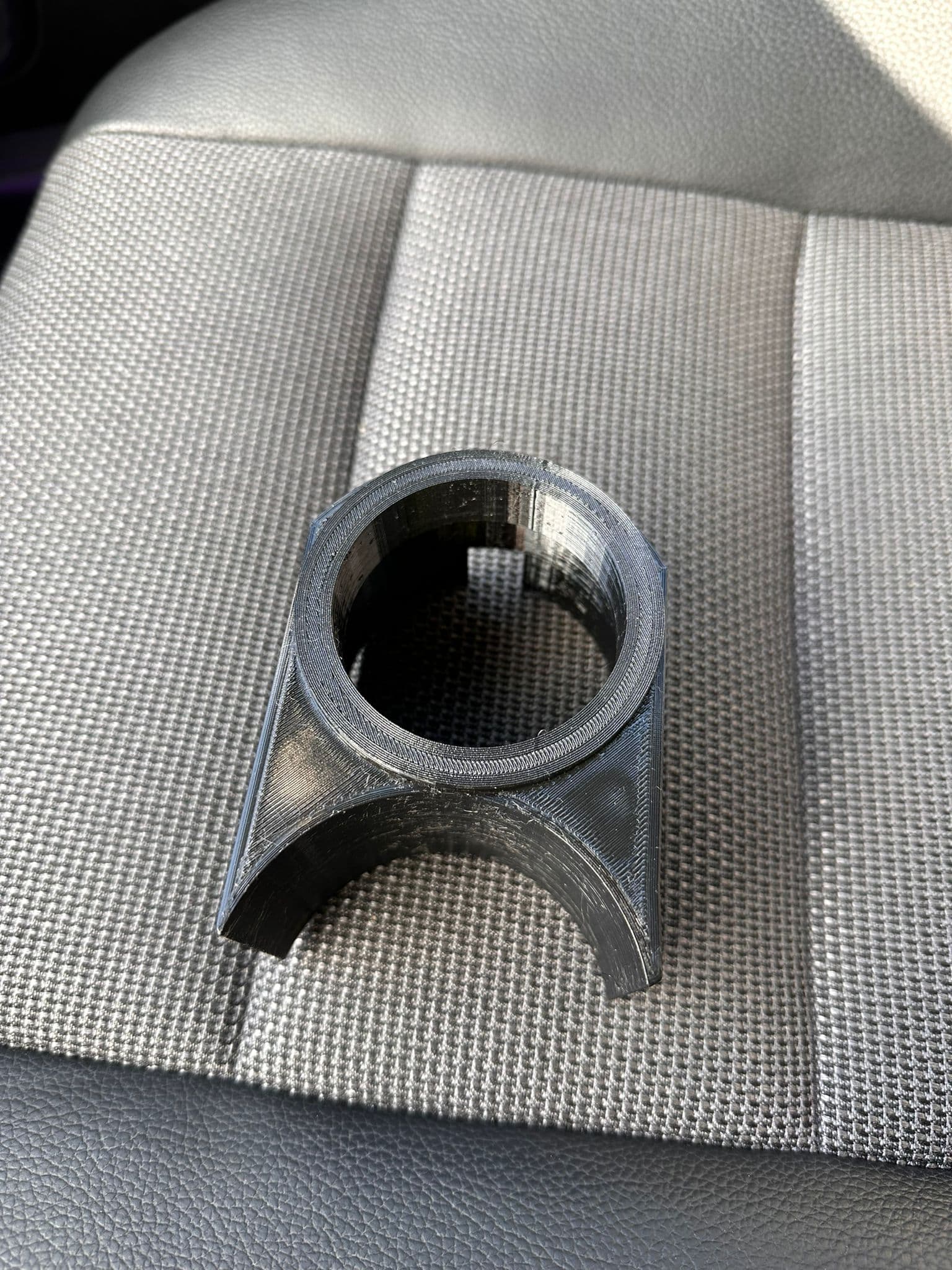

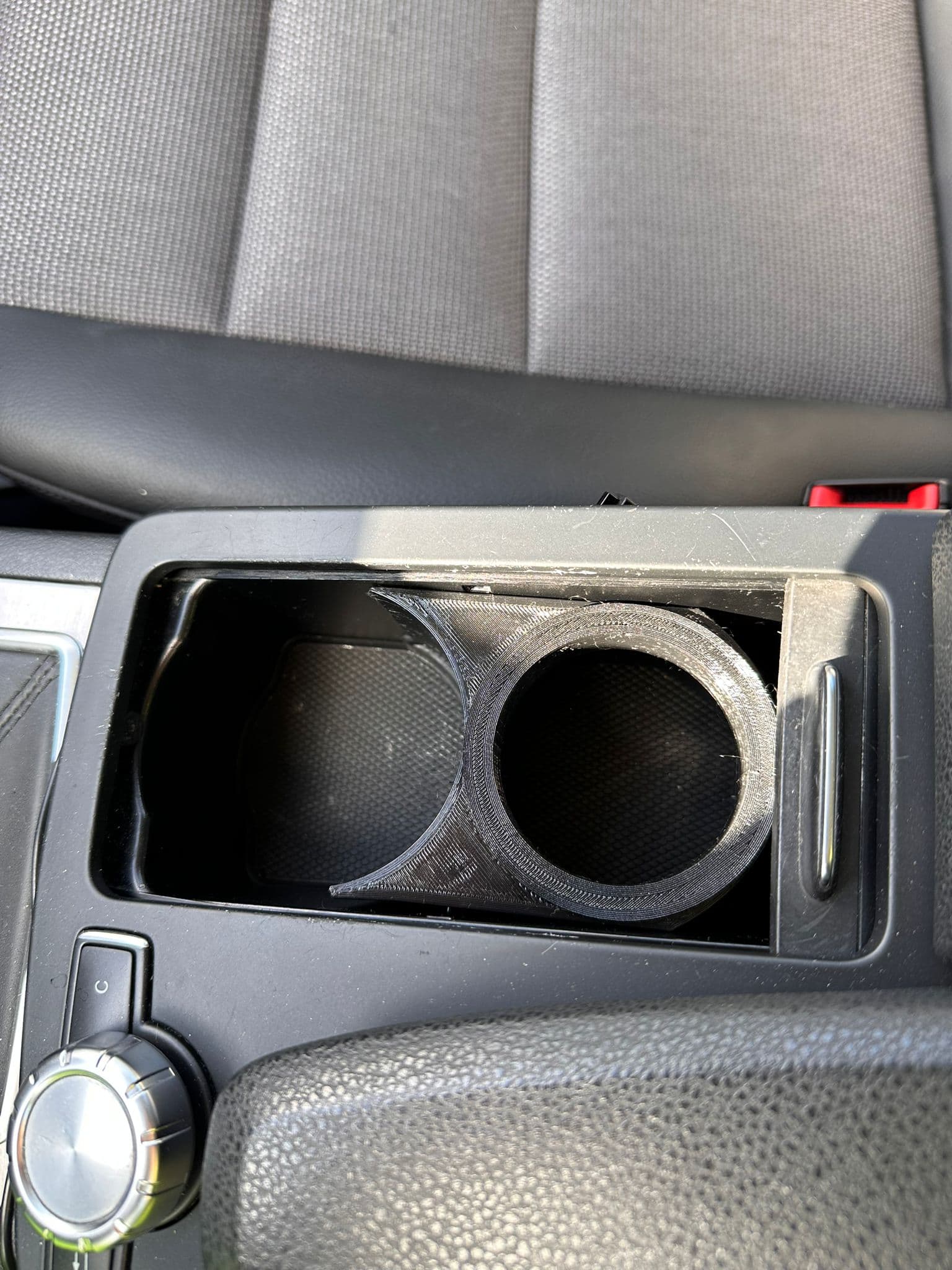

Cup holder designed for a 2013 C180 and physically shown in its centre console, with short and long sleeves for 59 mm cans and larger containers. The creator recommends PETG or ABS for cabin heat, supports and roughly 0.16–0.24 mm layers. Match the console and container diameter, check selector and control clearance and use only closed, cool containers until retention is proven; verify the holder cannot loosen or cause a spill under braking.
