PART №1795
Cupholder Device Stand
ABS · Nylon · PETGMULTI-PART3 FILESCC-BY-NC-SAConsole & storage
- PART
- Cupholder Device Stand
- OEM
- —
- FITS
- C-Class W204 / S204 / C204
Loading 3D viewer...
Ref 17953 STL filesPrints without supports
Field photographs
5 PLATES
PLATE 01 / 05No caption recorded
Files & dimensions
MAN-1795- [01]box-mod-stand-base.stlbox-mod-stand-base.stl.STL
- [02]box-mod-stand-disc.stlbox-mod-stand-disc.stl.STL

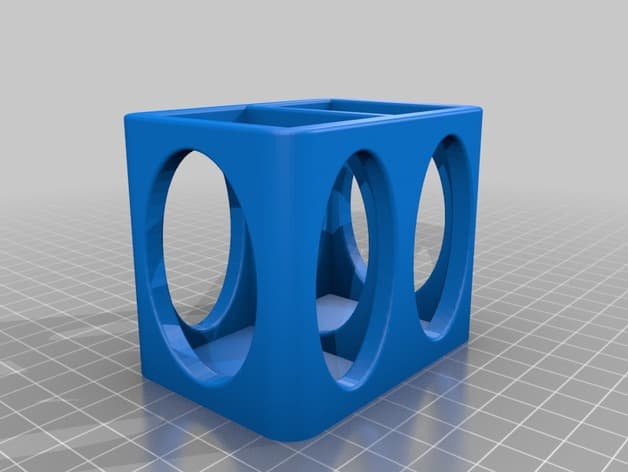

- [03]box-mod-stand.stlbox-mod-stand.stl.STL
- [04]Bounding box144.000 × 134.000 × 80.000 mm
- [05]Volume231,393.028 mm³
Field notes

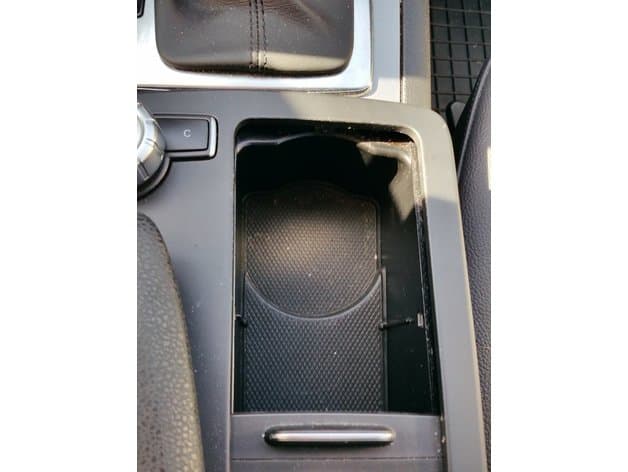

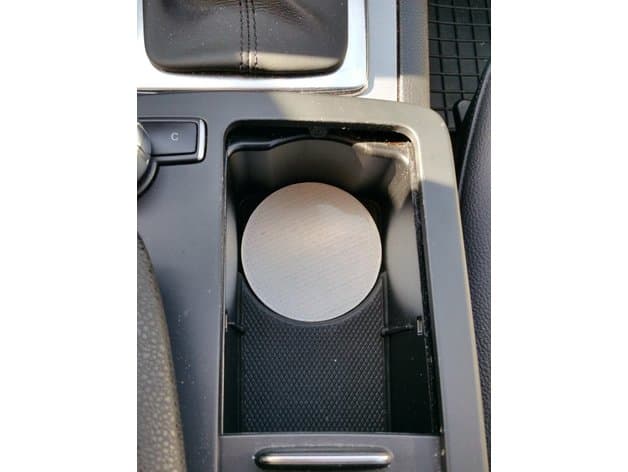

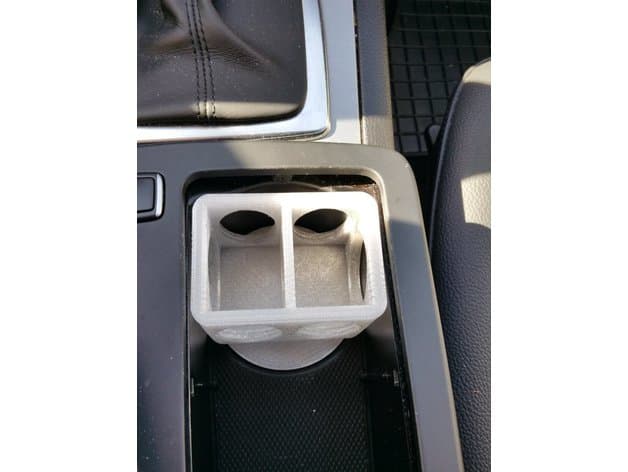

BY ANDY S1957 (ANDYS1957)Three-file stand for holding several stated box-mod device sizes in the centre-console cupholder. For this generation the creator instructs that the supplied disc be glued or screwed to the bottom of the stand and reports printing in PETG. Match the cupholder and device dimensions, use cabin-heat-resistant material, assemble the disc securely and confirm that the stand and device cannot obstruct the selector or controls, spill into sockets or become a projectile under braking.
