PART №1713

Panoramic-Roof Sunblind Hook Set

ABS · Nylon · PETGMULTI-PART2 FILESCC-BYCabin trim, cargo & roof

SummaryREF 1713

PART: Panoramic-Roof Sunblind Hook Set
OEM: —
FITS: C-Class W203 / S203 / CL203, C-Class W204 / S204 / C204

Loading 3D viewer...

Ref 17132 STL filesPrints without supports

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Files & dimensions

MAN-1713

[01]SoporteCortinillaMercedes__DER_.stlSoporteCortinillaMercedes__DER_.stl.STL
[02]SoporteCortinillaMercedes__IZQ_.stlSoporteCortinillaMercedes__IZQ_.stl.STL
[03]Bounding box49.500 × 44.000 × 17.969 mm
[04]Volume8,859.575 mm³

Field notes

BY CARLOS CORONIL (CORONIL82)

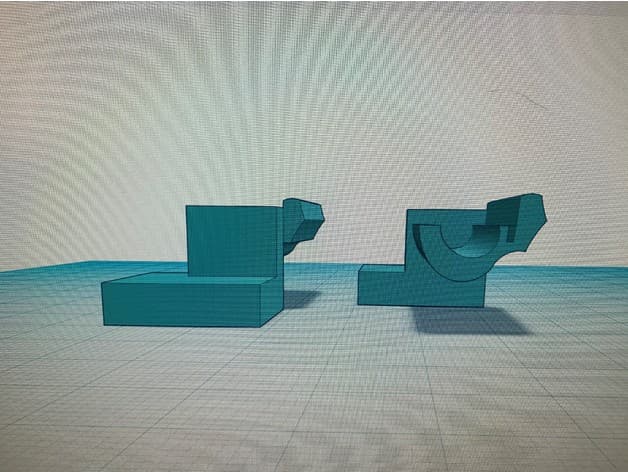

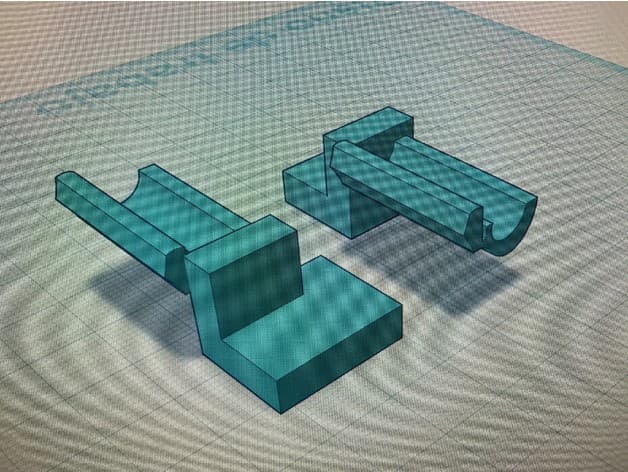

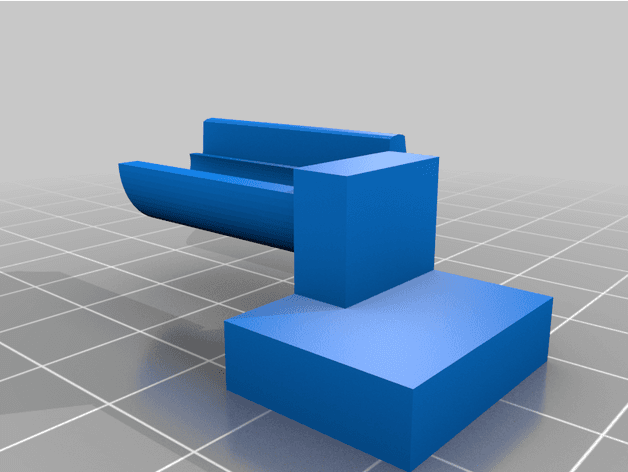

Left- and right-hand hooks for the front panoramic-roof sunblind, with physical prints shown by the creator. The source states CLC and W203/W204 fitment and recommends 0.2 mm layers, 100% infill and supports, but gives no production break or roof option code. Compare both original hooks and roof system before printing, use UV- and cabin-heat-resistant material and verify smooth blind travel with no loose part near occupants.

View original source ↗
