PART №1605

Bonnet-Release Lever Trim Panel

ABS · Nylon · PETG1 FILECC-BYDashboard & controls
SummaryREF 1605
PART
Bonnet-Release Lever Trim Panel
OEM
FITS
S-Class W126 / C126
PartREV 2026

Loading 3D viewer...

Ref 16051 STL filePrints without supports
Field photographs
3 PLATES
Plate 1 of 3
PLATE 01 / 03No caption recorded
Files & dimensions
MAN-1605
  • [01]HoodReleaseR2.stl.STL
  • [02]Bounding box74.144 × 38.620 × 8.998 mm
  • [03]Volume9,703.859 mm³
Field notes
BY FORWARDOBI

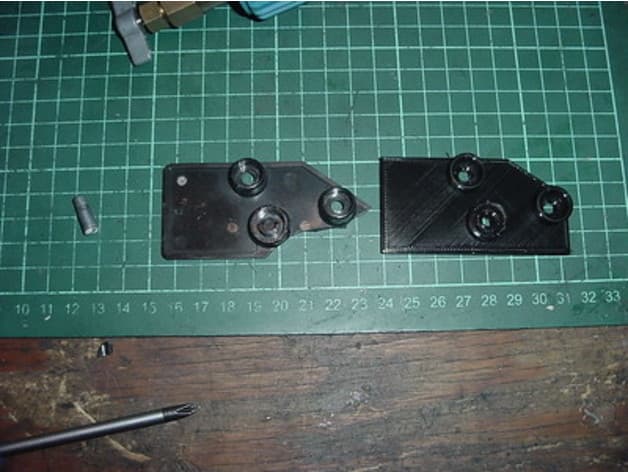

Replacement plastic trim panel surrounding the bonnet-release lever on a 300SD. Only the creator's revised R2 file is included; it raises the screw bosses and shortens the shoulders after the first version did not sit flat. The creator explicitly says it does not fit a 123-series car. Use heat-resistant material, retain the original fasteners, and confirm the panel sits flat without restricting full release-lever travel or bonnet-latch operation.
