PART №1651

Cassette-Slot Cup Holder

ABS · PETGMULTI-PART2 FILESCC-BY-NCConsole & storage
SummaryREF 1651
PART
Cassette-Slot Cup Holder
OEM
FITS
C-Class W202 / S202
PartREV 2026

Loading 3D viewer...

Ref 16512 STL filesPrints without supports
Field photographs
4 PLATES
Plate 1 of 4
PLATE 01 / 04No caption recorded
Files & dimensions
MAN-1651

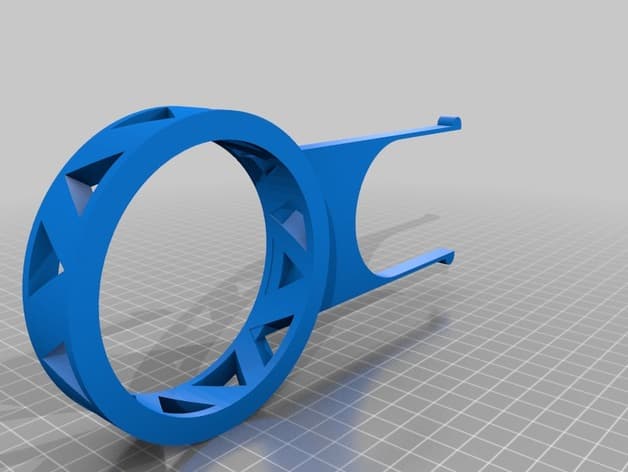

  • [01]Cassette_cupholder_v1_0degrees.obj.STL

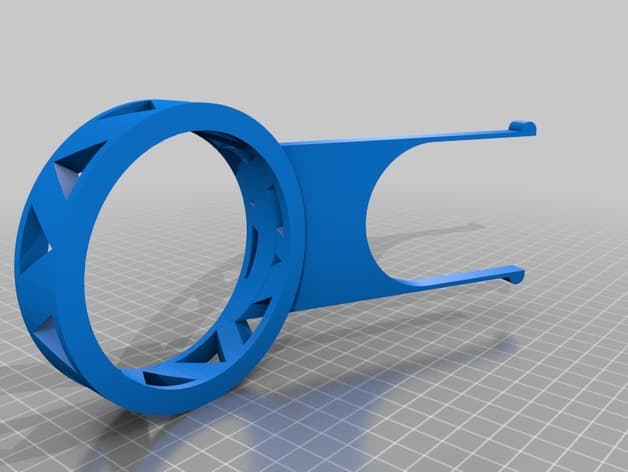

  • [02]Cassette_cupholder_v1_25_degrees.obj.STL
  • [03]Bounding box208.150 × 96.300 × 85.869 mm
  • [04]Volume116,676.522 mm³
Field notes
BY STEVE ALLEN (THEPHATMASTER)

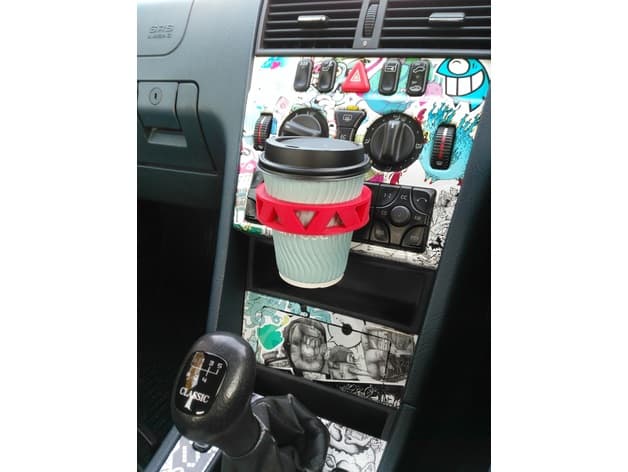

Cup holder for a cassette-deck opening, tested by the creator in this vehicle generation with 12 oz and 16 oz UK cups. Two OBJ variants are supplied: zero degrees and 25 degrees; the creator states the 25-degree version keeps a drink upright in this cabin. The stereo must remain in cassette-eject mode while fitted. Use cabin-heat-resistant material, verify the deck supports the holder without damage, keep liquids away from electrical controls and occupants, and test retention with a cold, closed container before road use; hot liquids and abrupt braking can cause burns or electronic damage.
