PART №1602

Centre-Console Roll-Top Closure Guide

ABS · Nylon · PETG1 FILECC-BY-NCConsole & storage
SummaryREF 1602
PART
Centre-Console Roll-Top Closure Guide
OEM
FITS
S-Class W126 / C126
PartREV 2026

Loading 3D viewer...

Ref 16021 STL filePrints without supports
Field photographs
3 PLATES
Plate 1 of 3
PLATE 01 / 03No caption recorded
Files & dimensions
MAN-1602
  • [01]Mercedes_Benz_560_SEL_Mittelkonsole_Verschluss.stl.STL
  • [02]Bounding box117.000 × 24.500 × 16.100 mm
  • [03]Volume9,442.012 mm³
Field notes
BY STH01

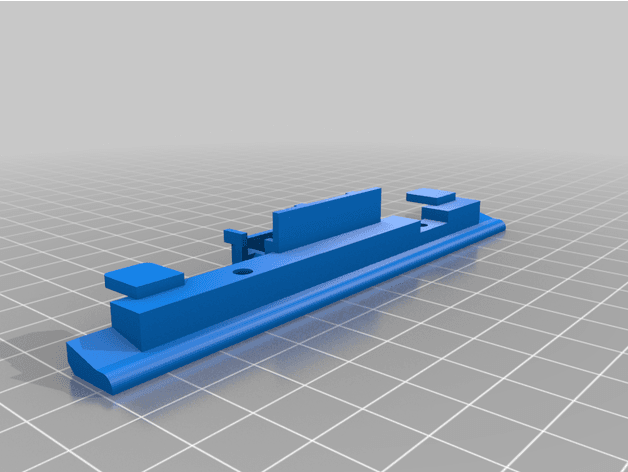

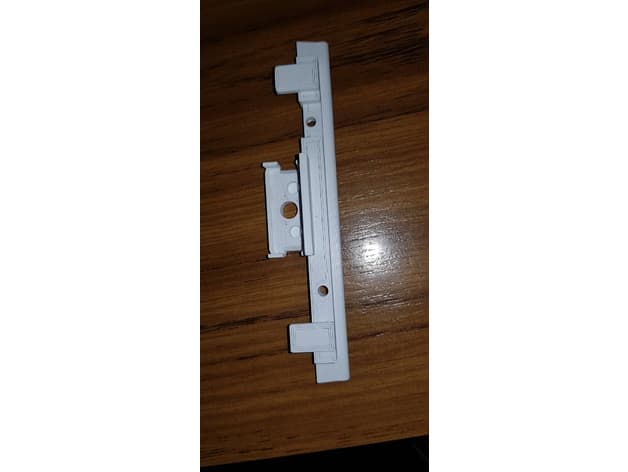

Replacement closure/side-guide piece for a centre console with a wooden roll-top. The creator copied the original for a 560 SEL, reports that the final file is installed and working, and also labels the application C126; because that body-code wording conflicts with the 560 SEL model name, compare the console and original guide rather than assuming every saloon or coupé uses it. Use heat-resistant material and confirm smooth roll-top travel without stressing the wood or adjacent switches.
