PART №1657

Cigarette-Lighter Socket Adapter

ABS · Nylon1 FILECC-BYDashboard & controls
SummaryREF 1657
PART
Cigarette-Lighter Socket Adapter
OEM
FITS
C-Class W202 / S202
PartREV 2026

Loading 3D viewer...

Ref 16571 STL filePrints without supports
Field photographs
3 PLATES
Plate 1 of 3
PLATE 01 / 03No caption recorded
Files & dimensions
MAN-1657
  • [01]adapter v1.stl.STL
  • [02]Bounding box40.000 × 30.000 × 12.000 mm
  • [03]Volume5,531.605 mm³
Field notes
BY FEVON

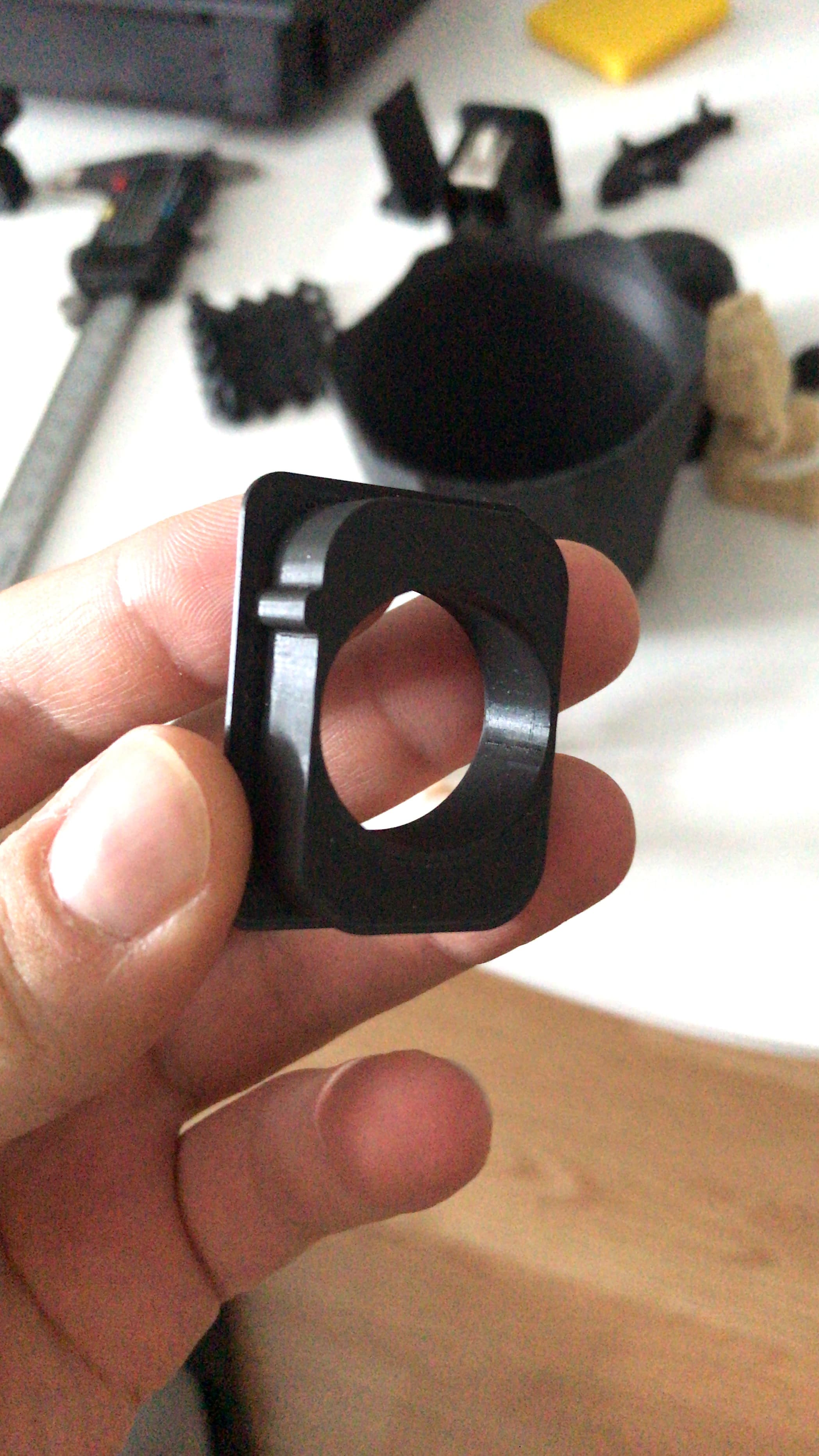

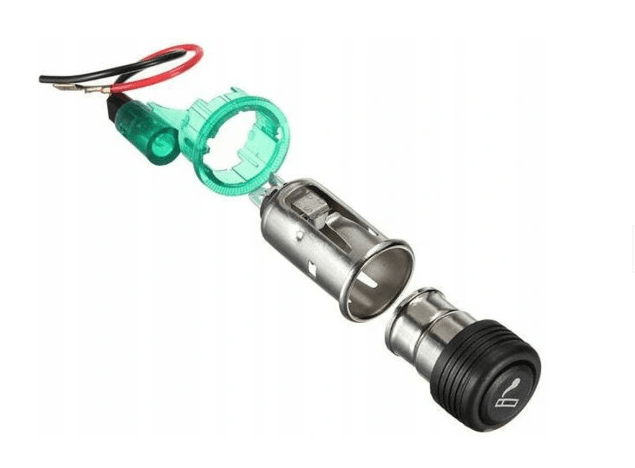

Push-fit mechanical adapter that converts the smaller dashboard lighter opening to accept the larger socket insert shown by the creator. The creator supplies one STL and physical source images but does not state socket current, fuse rating or heat testing. Match the opening and chosen insert, use flame- and cabin-heat-resistant material, retain the original fused circuit limits, insulate all terminals, keep the socket clear of adjacent controls and stop use if the print softens, loosens or heats.
