PART №1813
Cupholder Phone Rest
ABS · Nylon1 FILECC-BYConsole & storage
- PART
- Cupholder Phone Rest
- OEM
- —
- FITS
- E-Class W212 / S212 / C207 / A207

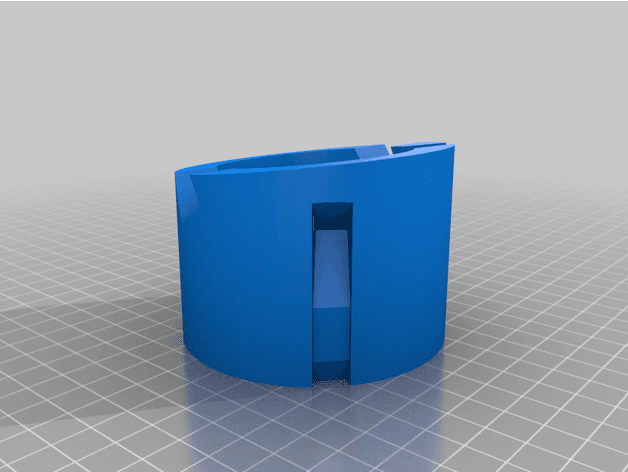

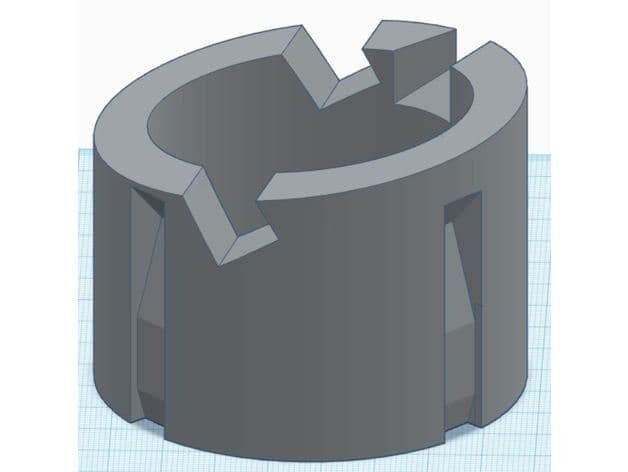

Loading 3D viewer...
Ref 18131 STL filePrints without supports
Field photographs
5 PLATES
PLATE 01 / 05No caption recorded
Files & dimensions
MAN-1813- [01]W212_phone_holder.stlW212_phone_holder.stl.STL
- [02]Bounding box81.210 × 81.210 × 59.305 mm
- [03]Volume119,980.156 mm³
Field notes

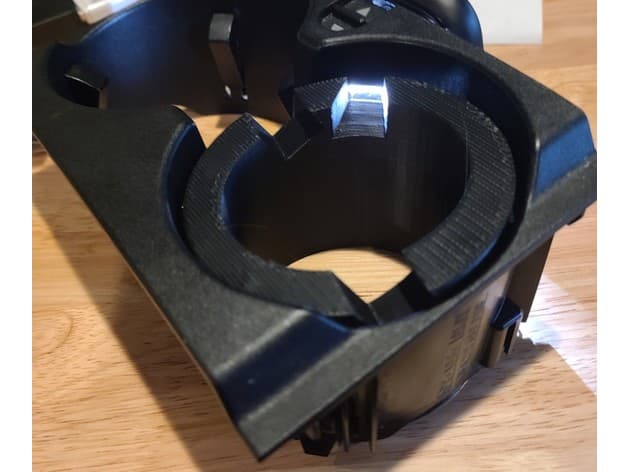

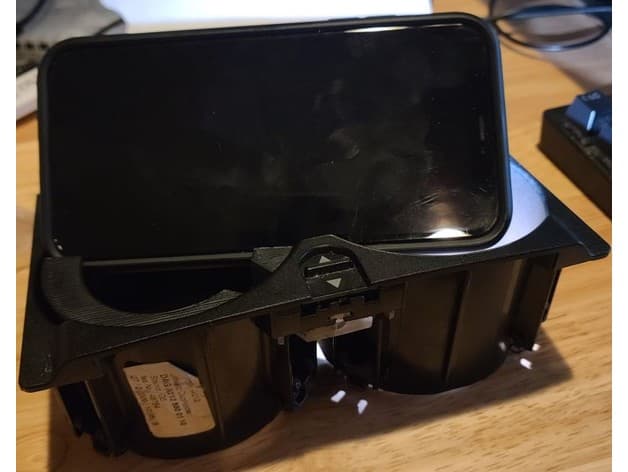

BY RICHARD WAGNER (RWAGZ)Cupholder-mounted phone rest designed for pre-facelift 2010–2011 W212 E350 sedans. The author shows the physical print with the original cupholder and states that its open centre permits a charging cable while the factory cover can still close. Print in ABS or another proven cabin-heat-resistant material, match the cupholder and phone dimensions, route the cable clear of controls, and verify the rest cannot release the phone or interfere with the selector under braking.
