PART №1810
Dashboard iPhone Holder
ABS · Nylon · PETG · TPUMULTI-PART3 FILESCC-BYDashboard & controls
- PART
- Dashboard iPhone Holder
- OEM
- —
- FITS
- E-Class W212 / S212 / C207 / A207
Loading 3D viewer...
Ref 18103 STL filesPrints without supports
Field photographs
6 PLATES
PLATE 01 / 06No caption recorded
Files & dimensions

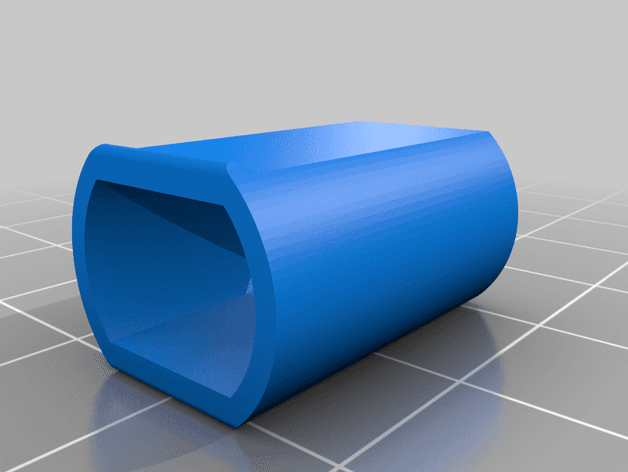

MAN-1810- [01]Adapter_fuer_IPHONE6S.stlAdapter_fuer_IPHONE6S.stl.STL

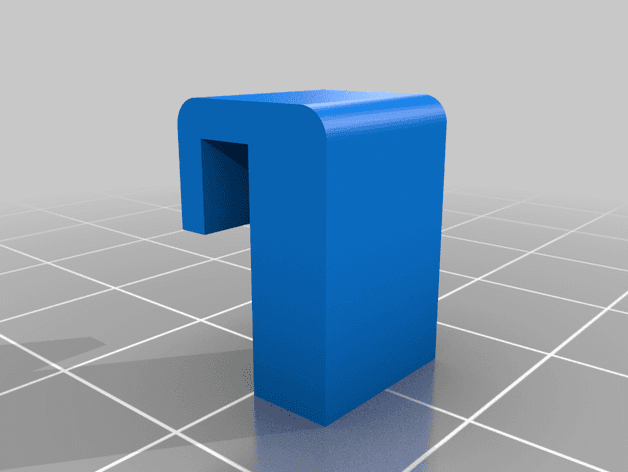

- [02]Handyhalter_Auto_04_Gummiaufsatz.stlHandyhalter_Auto_04_Gummiaufsatz.stl.STL

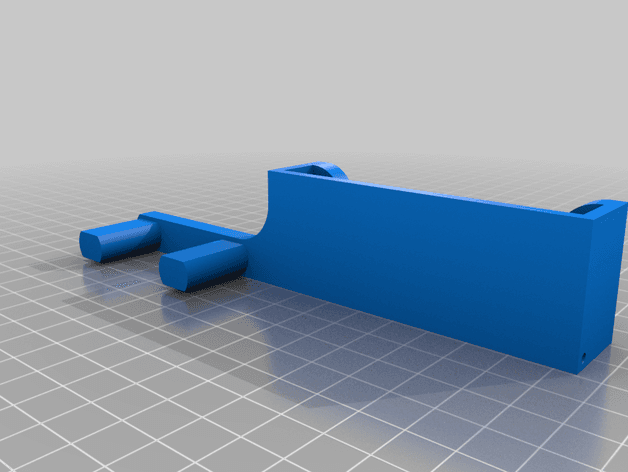

- [03]Handyhalter_Auto_07.stlHandyhalter_Auto_07.stl.STL
- [04]Bounding box185.000 × 43.000 × 32.000 mm
- [05]Volume31,371.644 mm³
Field notes
BY MARKUS HARDER (MARKUSHA_ENGINEERING)Three-file phone holder designed and physically shown in a W212 dashboard and explicitly stated for W212 sedan and C207 coupe fitment. The main geometry fits an iPhone XR; an adapter fits an iPhone 6S, and the creator recommends a 2 mm metal reinforcing rod plus a separately printed rubber pad for hot-cabin durability. Match the phone and dashboard interface, use heat-resistant material, assemble every piece securely, and verify the holder cannot obscure controls, airbags or the road or release the phone under braking.
