PART №1653

Door-Sill Retaining Pin

ABS · Nylon · PETG1 FILECC-BYBody panels & exterior trim
SummaryREF 1653
PART
Door-Sill Retaining Pin
OEM
FITS
C-Class W202 / S202
PartREV 2026

Loading 3D viewer...

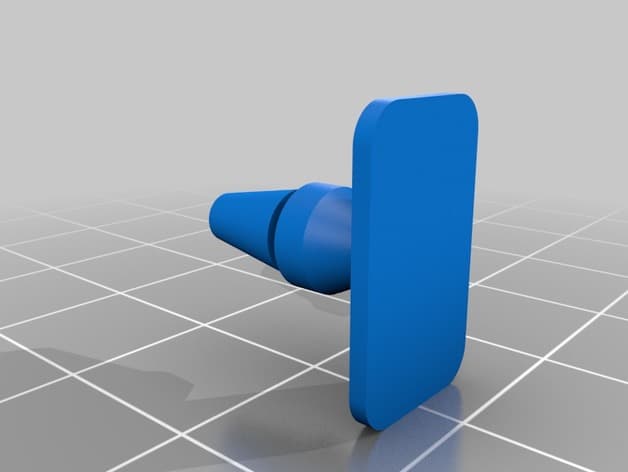

Ref 16531 STL filePrints without supports
Field photographs
3 PLATES
Plate 1 of 3
PLATE 01 / 03No caption recorded
Files & dimensions
MAN-1653
  • [01]door-sill-retaining-pin.stl.STL
  • [02]Bounding box16.000 × 14.500 × 9.500 mm
  • [03]Volume356.27 mm³
Field notes
BY KAMIL RAPIOR (KAMIL_JAREK)

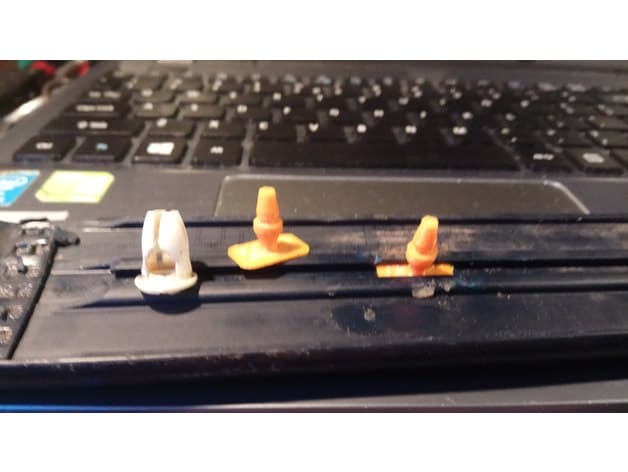

Small retaining pin used by the creator to mount a threshold/door-sill trim panel on this vehicle generation. Source images show the printed pin beside original-style pins and at the sill mounting points. Compare the original pin, panel hole and body socket before printing; use a tough cabin- and weather-resistant material, remove sharp edges, press-fit without forcing brittle trim and confirm the sill panel is fully retained and cannot foul the door.
