PART №1573
Mirror-Adjustment Handle
ABS · Nylon · PETGMULTI-PART2 FILESCC-BYMirrors
- PART
- Mirror-Adjustment Handle
- OEM
- —
- FITS
- 190 Series W201, E-Class W124 / S124 / C124 / A124, S-Class W126 / C126, W123 Series W123 / S123 / C123
Loading 3D viewer...
Ref 15732 STL filesPrints without supports
Field photographs
2 PLATES

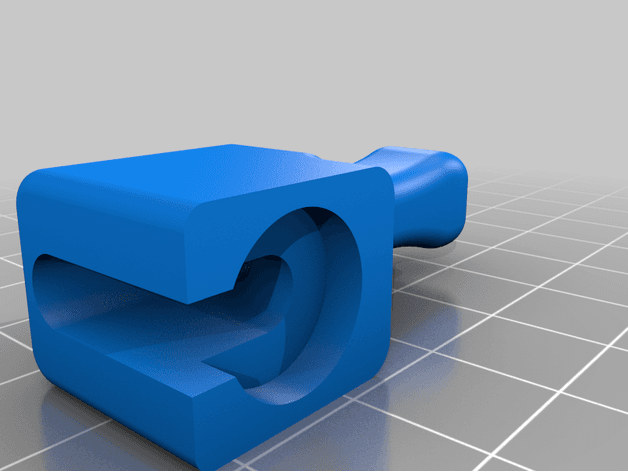

PLATE 01 / 02No caption recorded
Files & dimensions
MAN-1573- [01]handle.stlhandle.stl.STL
- [02]lock.stllock.stl.STL
Field notes
BY WARD VANDENBROUCKE (WVDBID)Two-piece handle and lock for the 5 mm manual driver-side mirror adjustment rod. The creator explicitly states W123, W124, W201 and W126 fitment. Use tough cabin material, check the rod diameter and locking engagement, and confirm full mirror travel without forcing the cable or mechanism.
