PART №1814
Multi-Function Cupholder Insert
ABS · Nylon · PETGMULTI-PART8 FILESCC-BY-NCConsole & storage
- PART
- Multi-Function Cupholder Insert
- OEM
- —
- FITS
- E-Class W212 / S212 / C207 / A207
Loading 3D viewer...
Ref 18148 STL filesPrints without supports
Field photographs
8 PLATES
PLATE 01 / 08No caption recorded
Files & dimensions
MAN-1814- [01]cup holder v2.3mfcup holder v2.3mf.STL
- [02]cup holder v2e.3mfcup holder v2e.3mf.STL
- [03]cup holder v3.3mfcup holder v3.3mf.STL
- [04]cup holder v3e.3mfcup holder v3e.3mf.STL
- [05]cup holder v3max.3mfcup holder v3max.3mf.STL

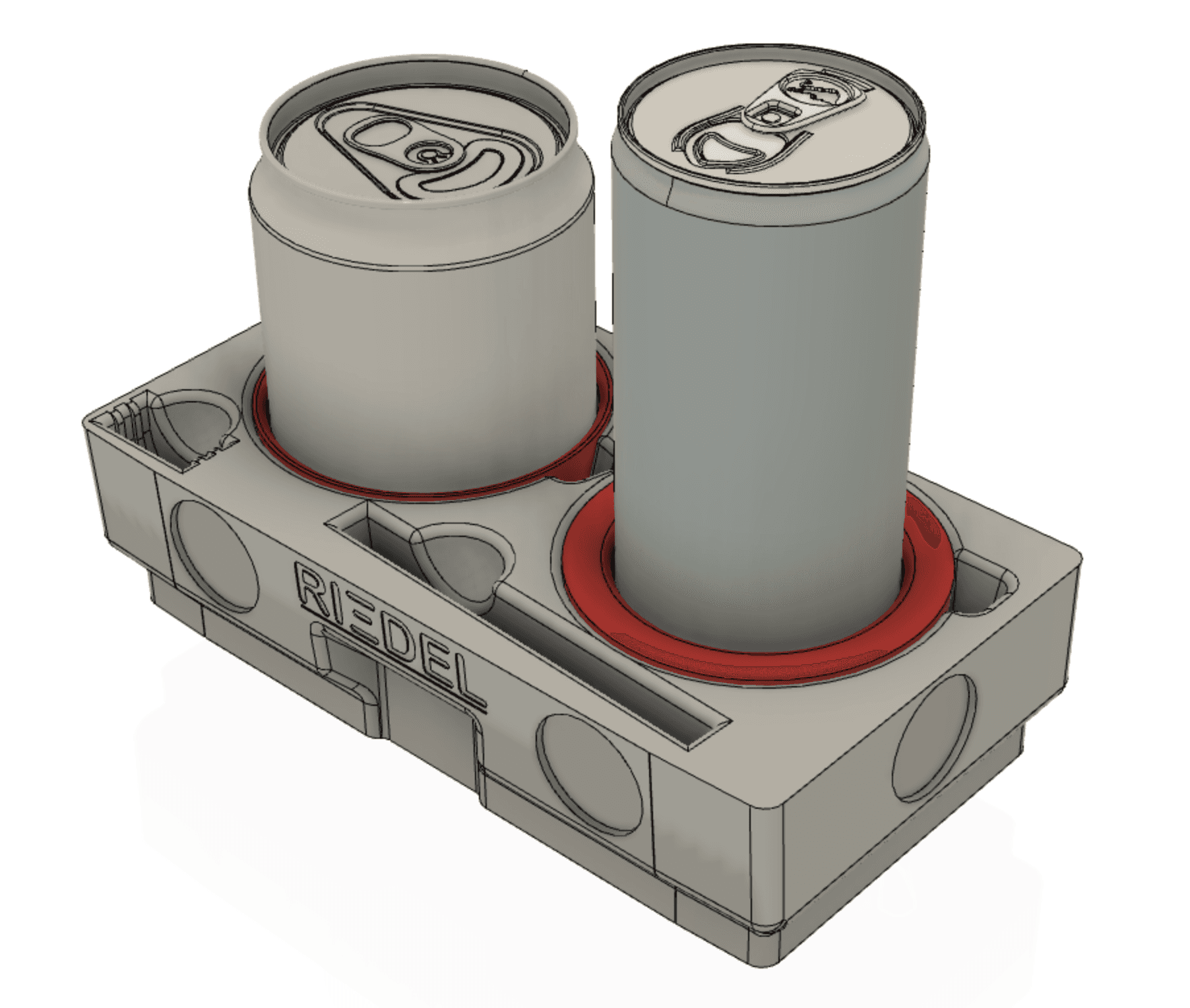

- [06]ring coke.3mfring coke.3mf.STL
- [07]ring slim coke.3mfring slim coke.3mf.STL
- [08]ring slim redbull.3mfring slim redbull.3mf.STL
- [09]Bounding box270.000 × 176.400 × 95.500 mm
- [10]Volume1,630,518.724 mm³
Field notes

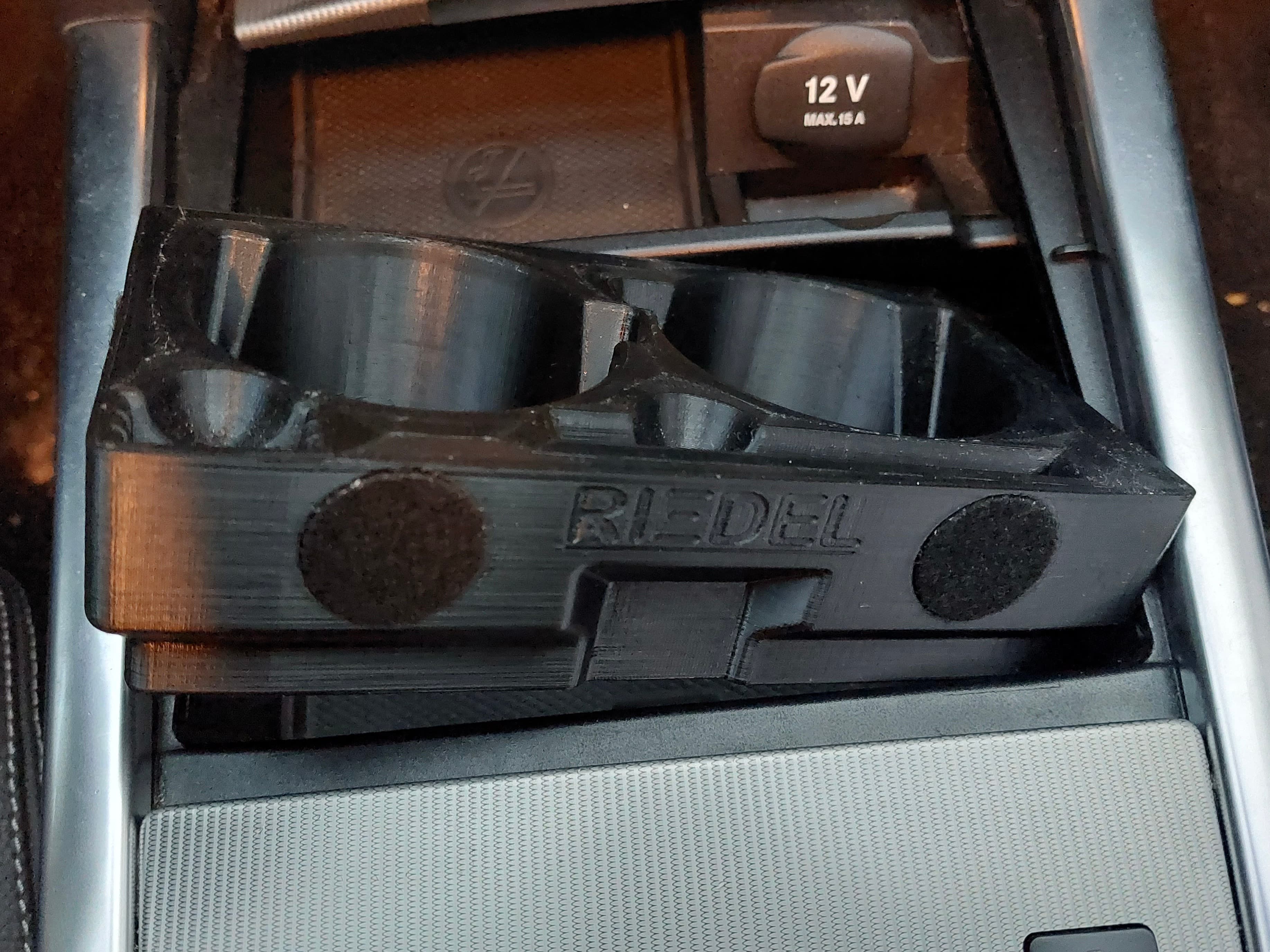

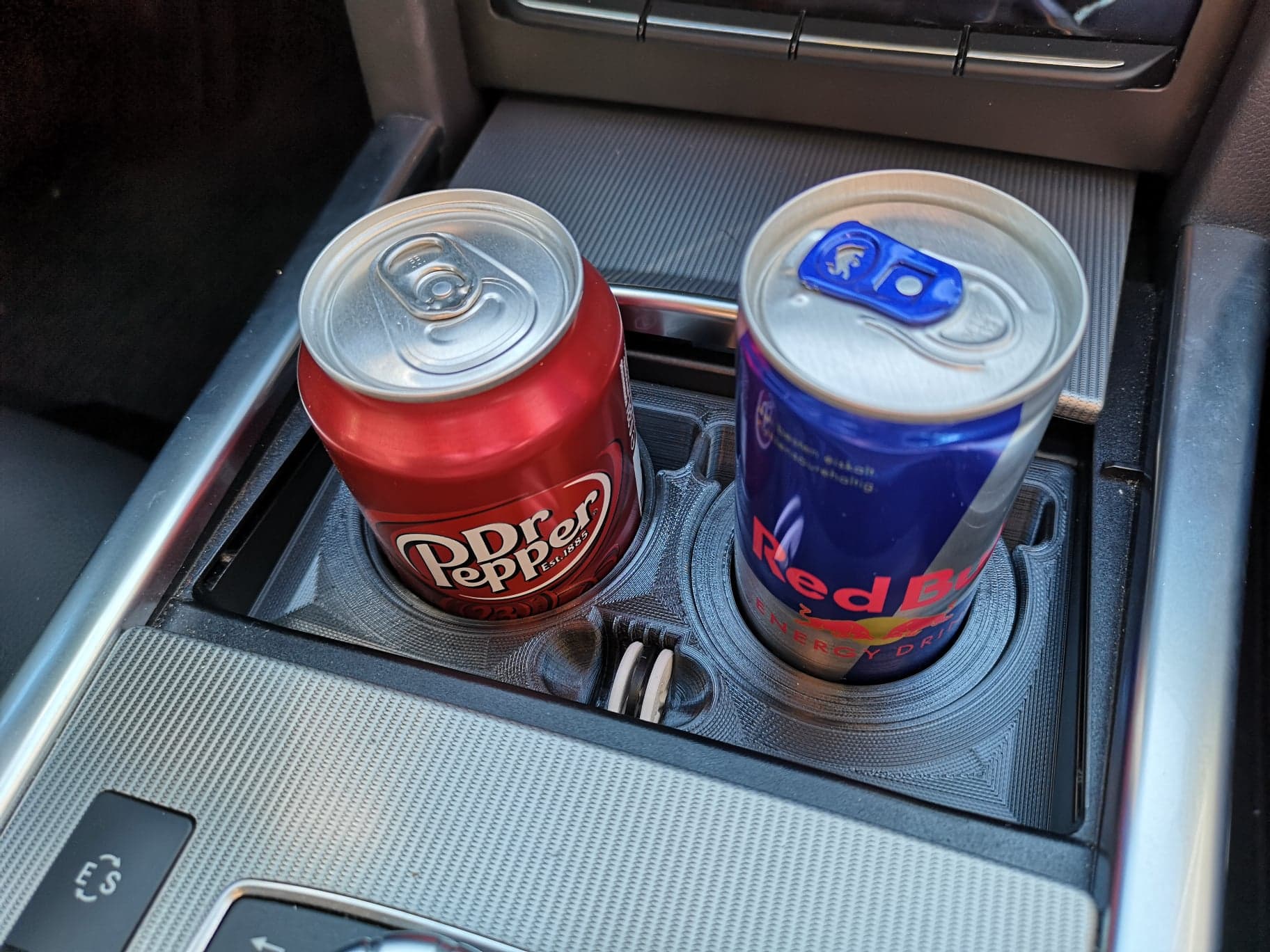

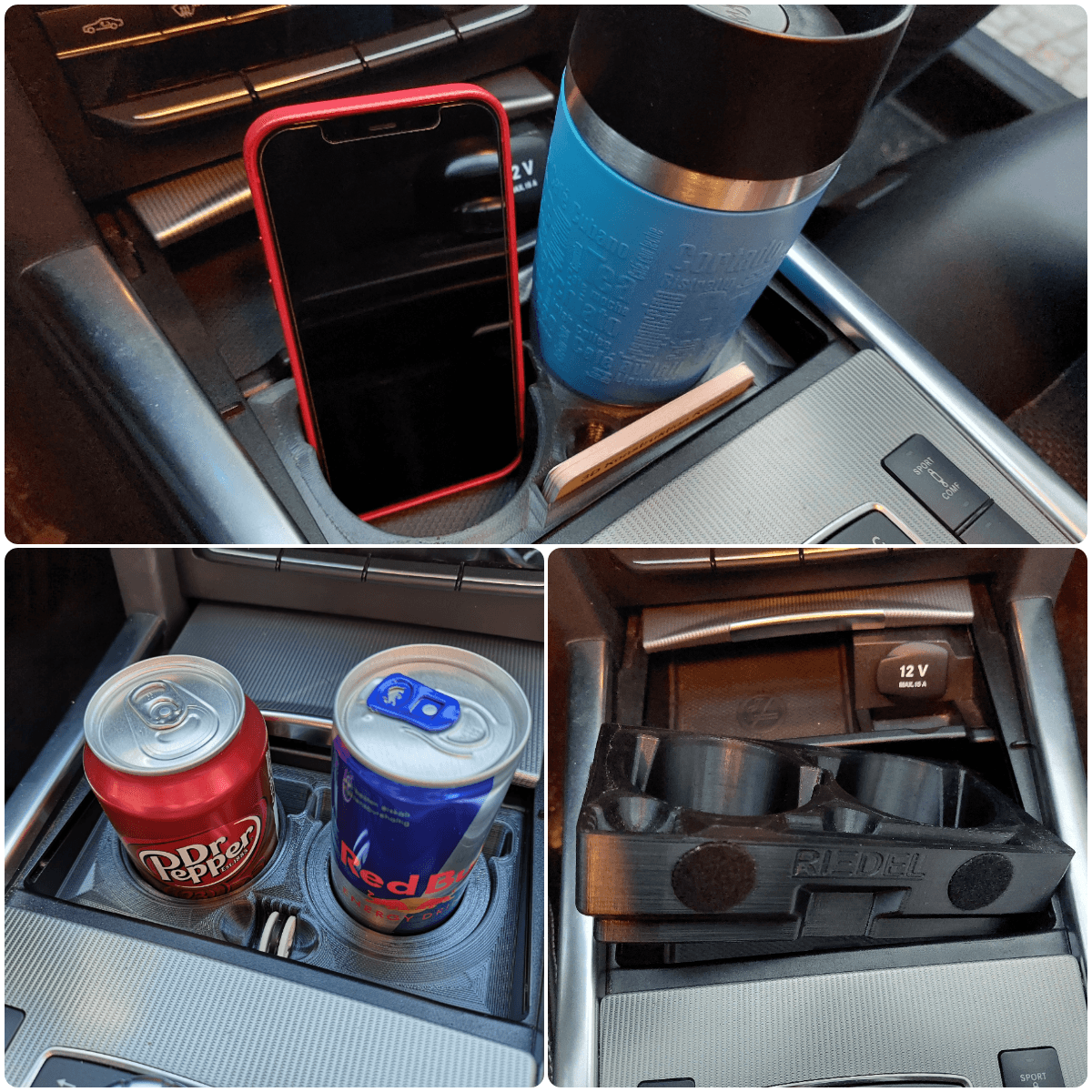

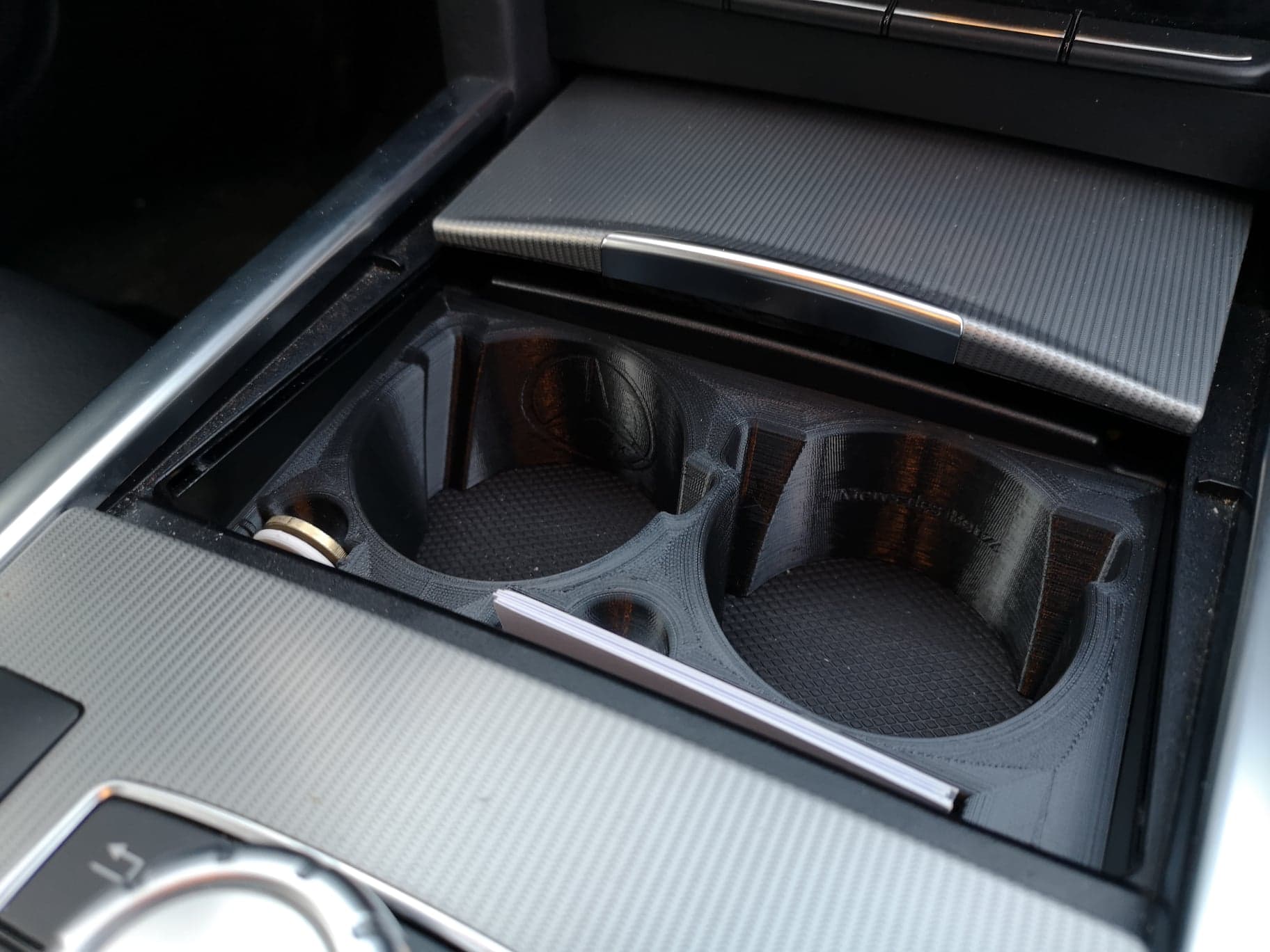

BY RI3DELAuthor-designed centre-console insert for W212 cars, physically shown in use with cups and a phone. The source supplies variants for 14 mm, 20 mm and 84 mm-wide phone cases plus can-stabilising rings, coin and card storage, specifies 24×3.5 mm felt pads for retention, and warns not to use PLA in summer cabin heat. Select only the matching variant, use heat-resistant material, fit the felt pads, and verify containers, cards and phone remain secure without obstructing controls.
