PART №1808
Overhead Trunk Hook
ABS · Nylon · PETGMULTI-PART2 FILESCC-BY-NCCabin trim, cargo & roof
- PART
- Overhead Trunk Hook
- OEM
- —
- FITS
- E-Class W212 / S212 / C207 / A207
Loading 3D viewer...

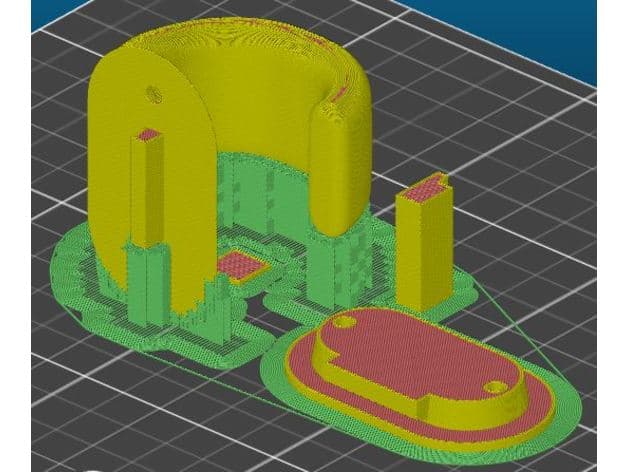

Ref 18082 STL filesPrints without supports
Field photographs
3 PLATES
PLATE 01 / 03No caption recorded
Files & dimensions
MAN-1808- [01]Assem2.STLAssem2.STL.STL
- [02]TrunkHookBase.STLTrunkHookBase.STL.STL
- [03]Bounding box62.822 × 60.000 × 55.012 mm
- [04]Volume45,447.138 mm³
Field notes

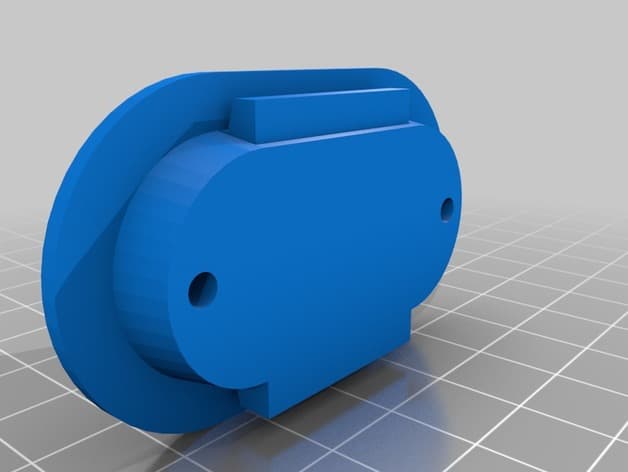

BY CARSTEN POULSEN (C172)Two-piece hook designed for the existing oval opening in the upper trunk sheet metal of the W212 sedan. The creator specifies two M4×10 mm countersunk screws and a sliding dead-bolt piece; the source identifies the installation position but does not show the hook installed or state a load rating. Use tough heat-resistant material, inspect the opening and sheet-metal edges, tighten both screws, and use only for light soft items after proving retention; never treat it as a cargo-restraint or safety anchor.
