PART №1811

Rear Sunshade Handle

ABS · Nylon · PETG1 FILECC-BY-NC-SACabin trim, cargo & roof
SummaryREF 1811
PART
Rear Sunshade Handle
OEM
FITS
E-Class W212 / S212 / C207 / A207
PartREV 2026

Loading 3D viewer...

Ref 18111 STL filePrints without supports
Field photographs
2 PLATES

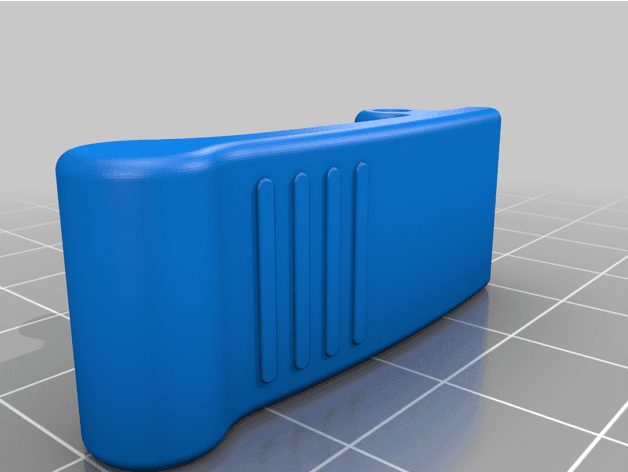

Plate 1 of 2
PLATE 01 / 02No caption recorded
Files & dimensions
MAN-1811
  • [01]E-Class_S212_sun_protection_handle_V1.stl.STL
  • [02]Bounding box39.998 × 16.000 × 10.498 mm
  • [03]Volume3,242.054 mm³
Field notes
BY CHRISTOPH SCHWARZENBERG (CHRISSZB)

Replacement handle designed for a broken rear-seat sun-protection shade and explicitly tagged for the S212 estate. The creator states that the printed handle must be drilled to 2.5 mm for final fit; no sedan, coupe or cabriolet application is established. Compare the original handle and pivot, use tough UV- and cabin-heat-resistant material, drill carefully, and confirm smooth shade movement without stressing the shade fabric or mechanism.
