PART №1604
Roll-Top Console Cup Holder
ABS · PETG1 FILECC-BY-NCConsole & storage
- PART
- Roll-Top Console Cup Holder
- OEM
- —
- FITS
- S-Class W126 / C126
Loading 3D viewer...
Ref 16041 STL filePrints without supports
Field photographs
7 PLATES
PLATE 01 / 07No caption recorded
Files & dimensions

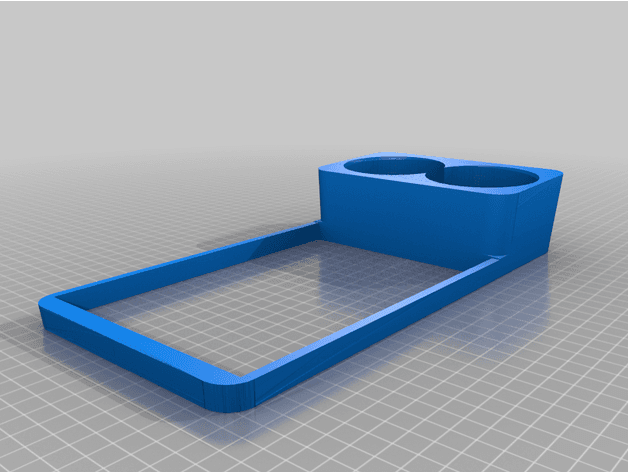

MAN-1604- [01]w126CupHolder.stlw126CupHolder.stl.STL

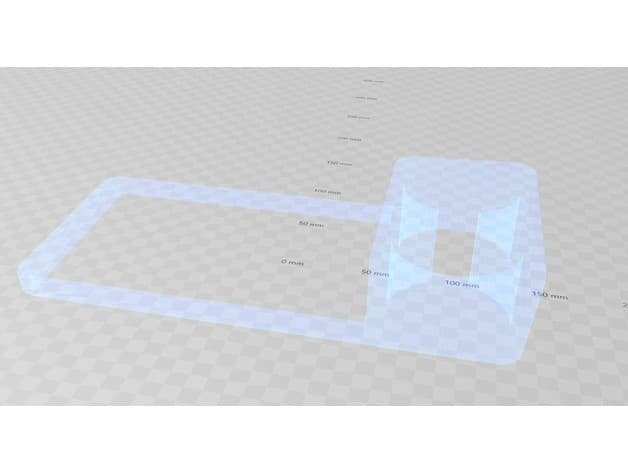

- [02]Bounding box289.922 × 143.022 × 50.906 mm
- [03]Volume244,631.846 mm³
Field notes

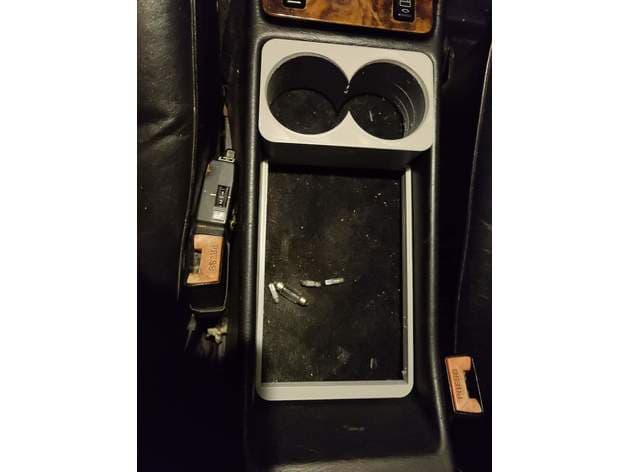

BY KENNY1309Two-place cup holder shaped for the 126-series centre console and shown installed over the roll-top compartment in the creator's source photographs. The creator printed it in PLA at 20% infill, sanded it and painted it; the preserved STL is non-watertight in an independent mesh audit, so inspect and repair the sliced geometry and choose cabin-heat-resistant material for vehicle use. Secure the holder without damaging trim or wiring, keep containers clear of the selector and controls, and confirm it cannot become a loose object under braking.
