PART №1609

Side-Skirt Fastening Clip

PETG1 FILECC-BYBody panels & exterior trim
SummaryREF 1609
PART
Side-Skirt Fastening Clip
OEM
FITS
S-Class W126 / C126
PartREV 2026

Loading 3D viewer...

Ref 16091 STL filePrints without supports
Field photographs
4 PLATES
Plate 1 of 4
PLATE 01 / 04No caption recorded
Files & dimensions
MAN-1609
  • [01]W126_Side_Skirt_Fastening_Clip.3mf.STL
  • [02]Bounding box19.850 × 19.000 × 16.800 mm
  • [03]Volume1,096.883 mm³
Field notes
BY PLASTRONICS

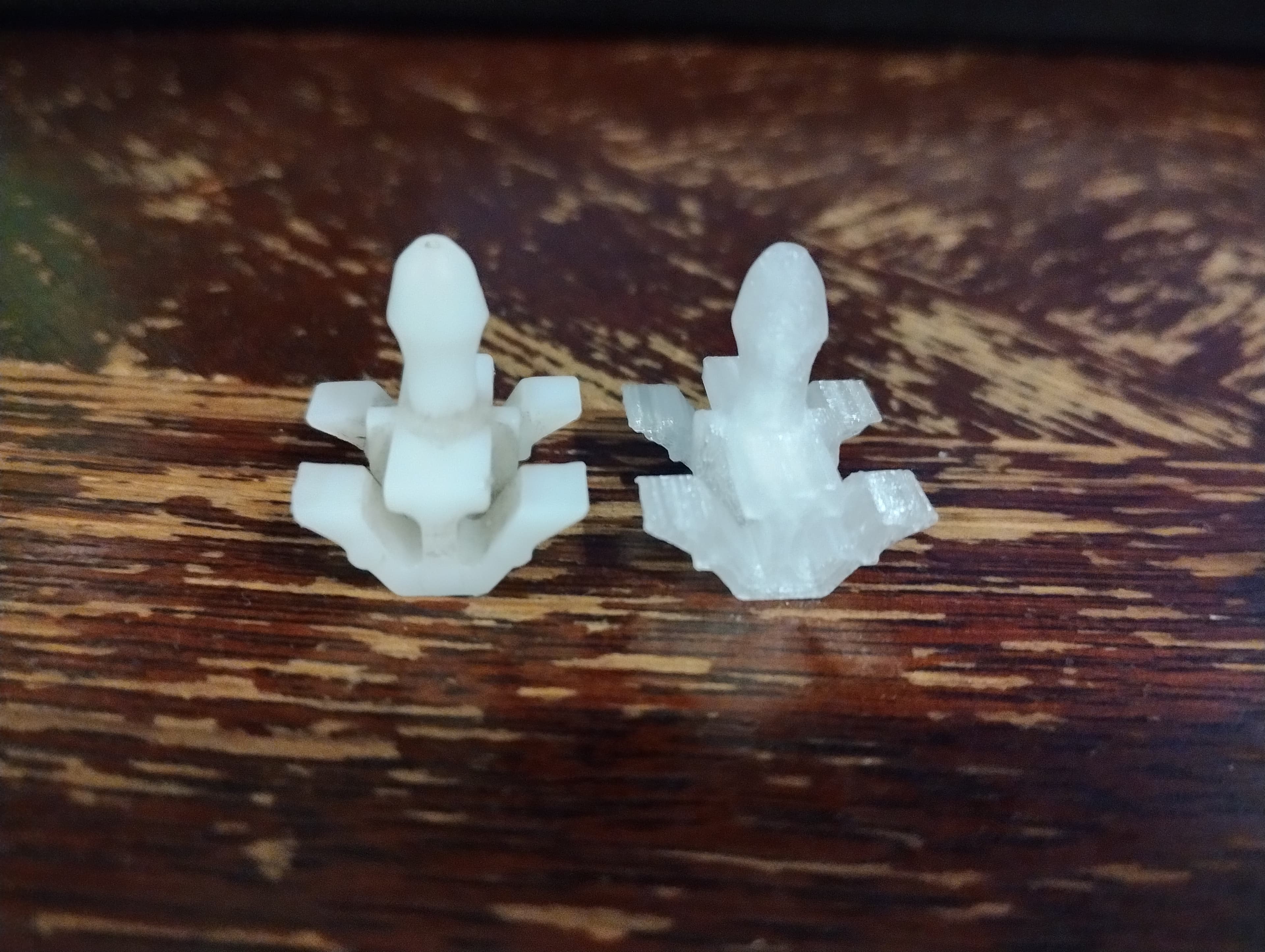

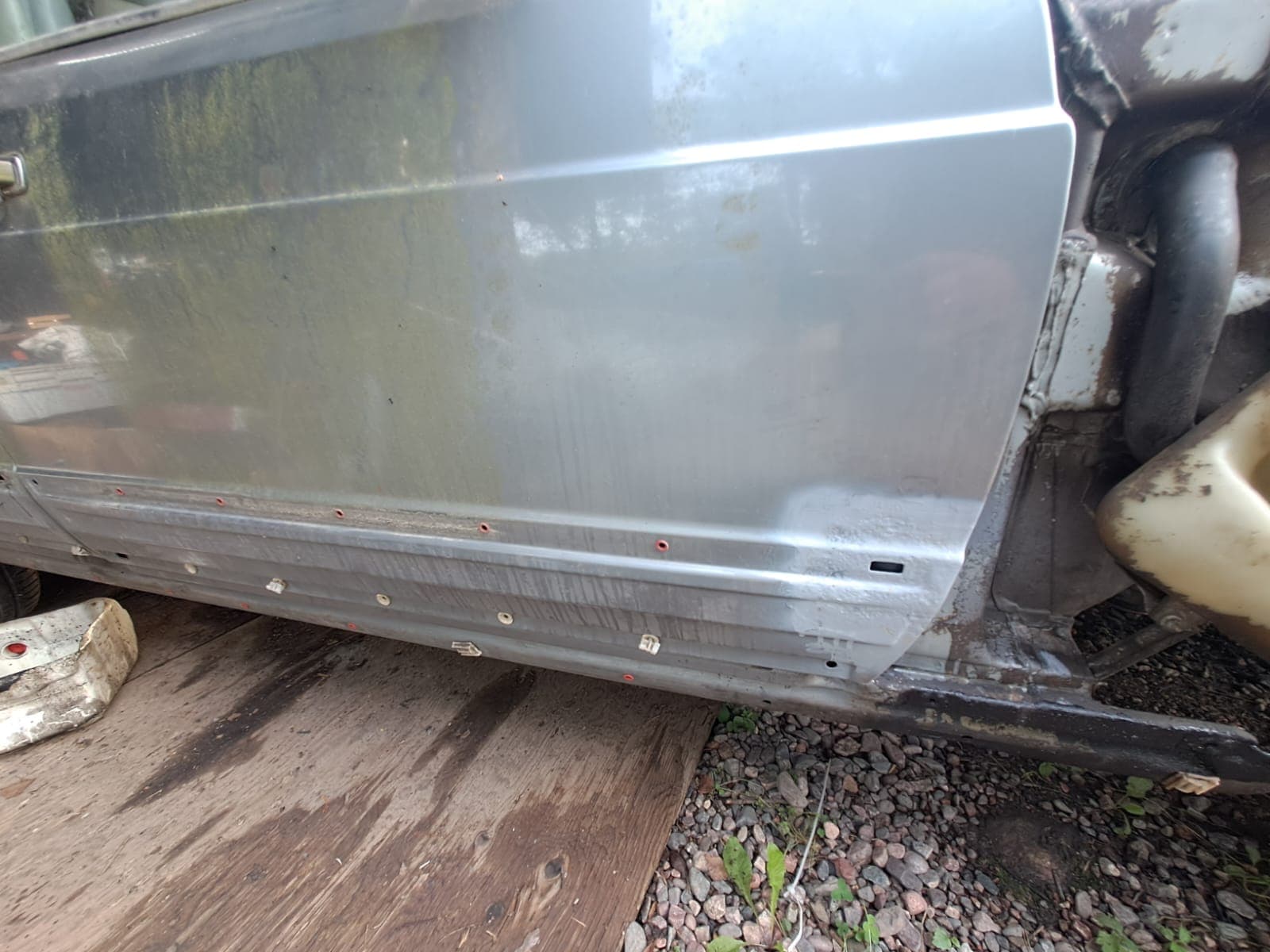

One-to-one copy of an original 126-series side-skirt fastener, printed by the creator in PETG with 0.1 mm layers, organic supports and four perimeters. Source photographs show the loose clip beside the original and the relevant body-cladding locations. W126 cladding uses several position-specific fasteners, so compare the original clip before use, deburr contact edges and confirm the panel is retained without distortion.
