PART №1568

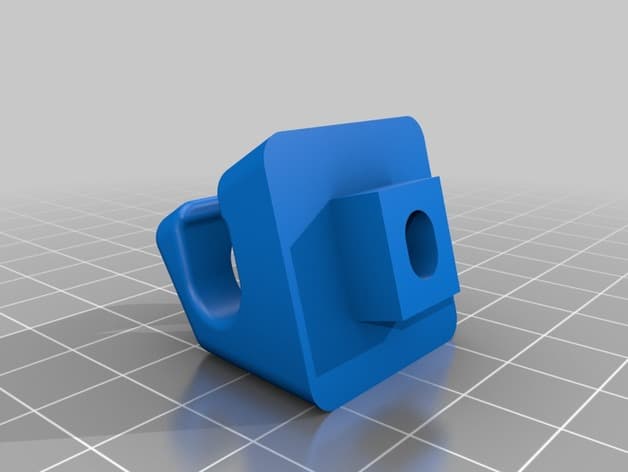

Sun-Visor Retaining Clip
ABS · Nylon · PETGMULTI-PART2 FILESCC-BY-NCCabin trim, cargo & roof
- PART
- Sun-Visor Retaining Clip
- OEM
- —
- FITS
- 190 Series W201, E-Class W124 / S124 / C124 / A124, S-Class W126 / C126, S-Class W140 / C140, W123 Series W123 / S123 / C123
Loading 3D viewer...
Ref 15682 STL filesPrints without supports
Field photographs
2 PLATES
PLATE 01 / 02No caption recorded
Files & dimensions
MAN-1568- [01]SunVisorClip_Main.stlSunVisorClip_Main.stl.STL
- [02]SunVisorClip_ScrewCover.stlSunVisorClip_ScrewCover.stl.STL
- [03]Bounding box40.851 × 31.607 × 27.000 mm
- [04]Volume8,796.112 mm³
Field notes
BY ROBOT BARNARD (ROBOTBARNARD)Two-piece retaining clip and screw cover for the cabin sun visor. The creator made it for a 1989 300E and explicitly states W123, W124, W126, W140 and W201 fitment, while noting that it does not carry electrical contacts for illuminated vanity mirrors. Print the main clip and locking cover in the documented orientations, use cabin-heat-resistant material, compare the screw position and visor profile, and confirm secure retention and free release before driving.
