PART №1600

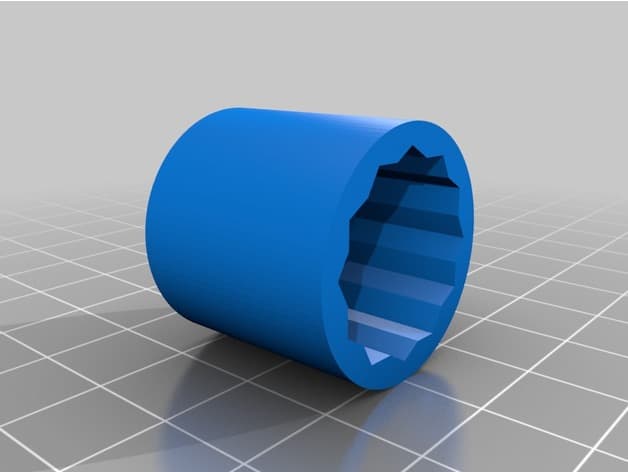

Sunroof-Motor Clutch Stop

ABS · Nylon · PETG1 FILECC-BY-NCCabin trim, cargo & roof
SummaryREF 1600
PART
Sunroof-Motor Clutch Stop
OEM
FITS
S-Class W126 / C126
PartREV 2026

Loading 3D viewer...

Ref 16001 STL filePrints without supports
Field photographs
2 PLATES
Plate 1 of 2
PLATE 01 / 02No caption recorded
Files & dimensions
MAN-1600
  • [01]w126_sunroof_motor_clutch_stop.stl.STL
  • [02]Bounding box25.000 × 25.000 × 23.000 mm
  • [03]Volume6,590.86 mm³
Field notes
BY SIRFERRET

Replacement stop for the sunroof-motor clutch adjustment on a 126-series car. The creator designed it after the missing part allowed the roof to drift out of adjustment and states that the part should work directly from the printer. Use cabin-heat-resistant material, compare the original drive version, set the clutch and travel according to service instructions, and verify complete opening, closing and manual emergency operation without binding.
