PART №1675

Windscreen-Wiper Spindle Nut Cover

ABS · Nylon · PETG1 FILECC-BYWipers & washers

SummaryREF 1675

PART: Windscreen-Wiper Spindle Nut Cover
OEM: —
FITS: SLK / SLC R170

Loading 3D viewer...

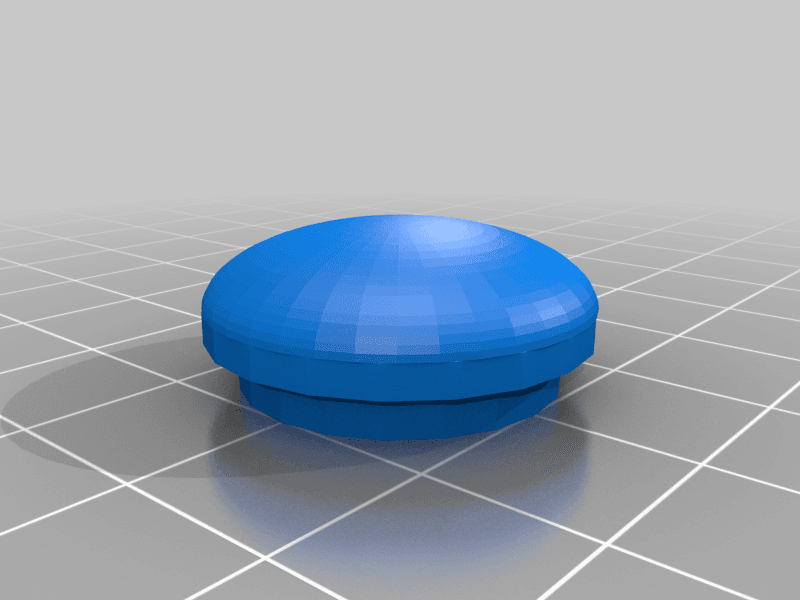

Ref 16751 STL filePrints without supports

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Files & dimensions

MAN-1675

[01]Scheibenwischerschraubenabdeckkappe_2.stlScheibenwischerschraubenabdeckkappe_2.stl.STL
[02]Bounding box24.250 × 24.250 × 10.000 mm
[03]Volume1,895.628 mm³

Field notes

BY CHRISTOPH GRALLA (DER_CGR1)

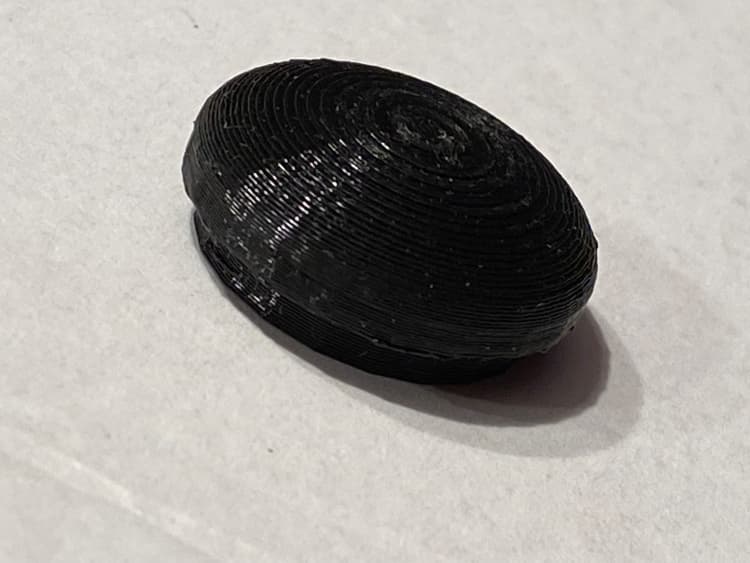

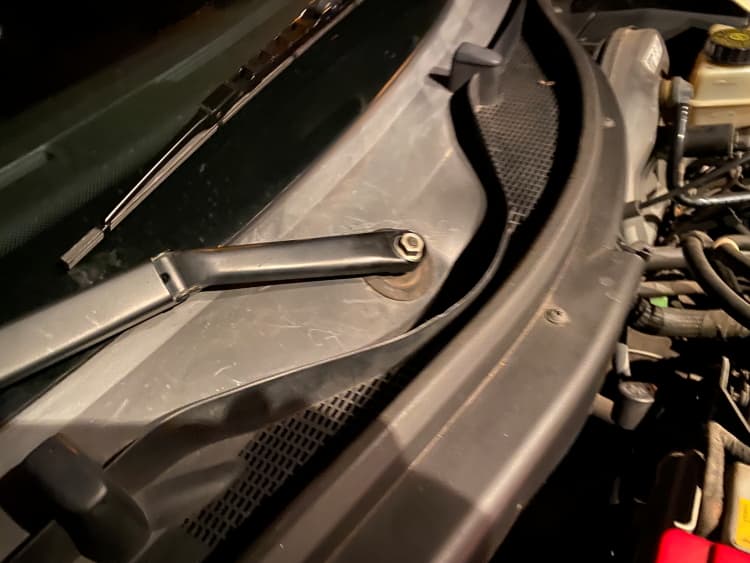

Replacement cap for the windscreen-wiper spindle screw on a 1997 SLK 230. Source photographs show the physical print loose, the uncovered spindle and the cap installed. Use UV-, weather- and heat-resistant material, match the spindle and nut dimensions, press on without disturbing wiper-arm torque, preserve full arm and bonnet clearance and verify secure retention through a complete wet-screen sweep.

View original source ↗
