Mercedes-Benz G-Class 3D-printable parts

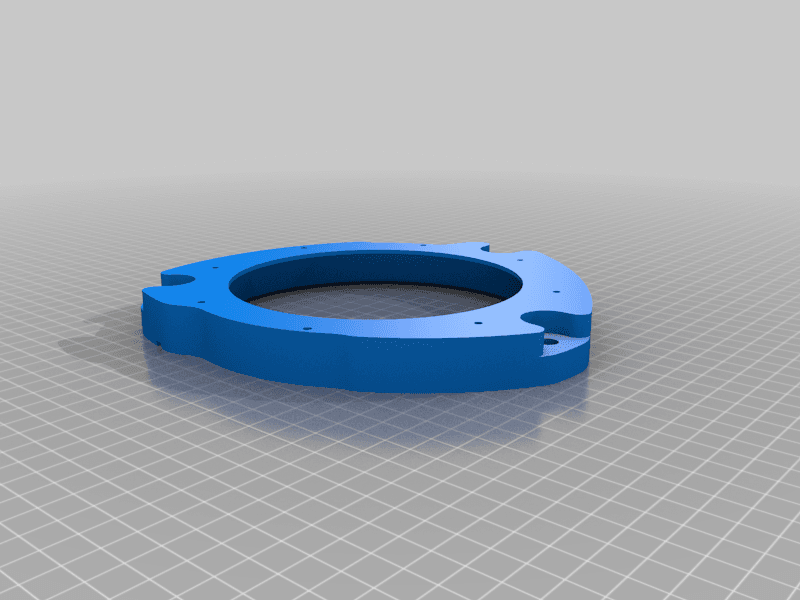

Speaker adapter developed and used to install a Polk DB652 in a 2002 G500. The preserved author file is named as a rear speaker mount; the source states that the adapter bolts to the vehicle with the original hardware, the speaker uses its supplied screws and the same geometry serves the driver and passenger sides. Match the speaker basket and mounting pattern, protect wiring, use material suitable for cabin heat and vibration, tighten hardware evenly and confirm the speaker, trim and wiring remain secure without rattles.

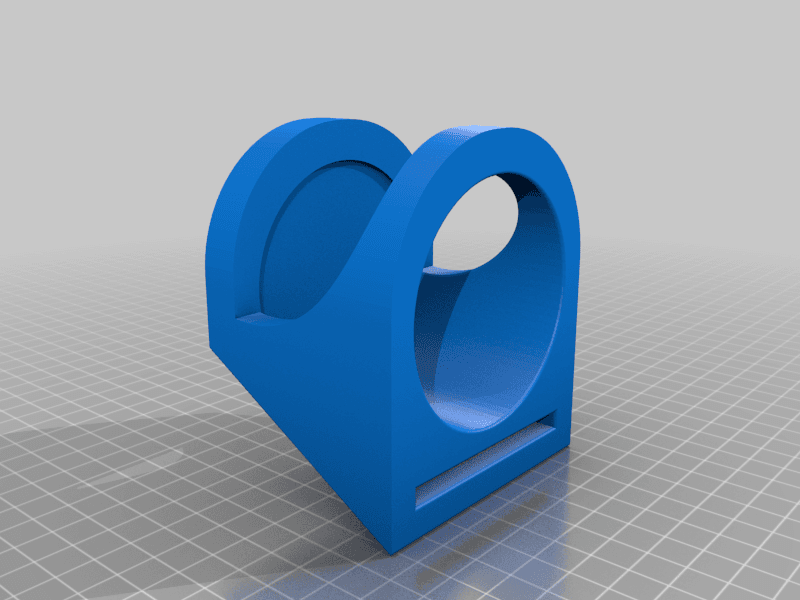

Custom cup holder that the creator states is made for this vehicle generation and attached with a zip tie. The publication supplies one STL and only a CAD-render source image; it gives no material, print settings, exact mounting location or long-term test evidence. Check container diameter, attachment-point strength and clearances, use cabin-heat-resistant material and secure it so neither the holder nor a drink can obstruct controls or occupants or become loose under braking.

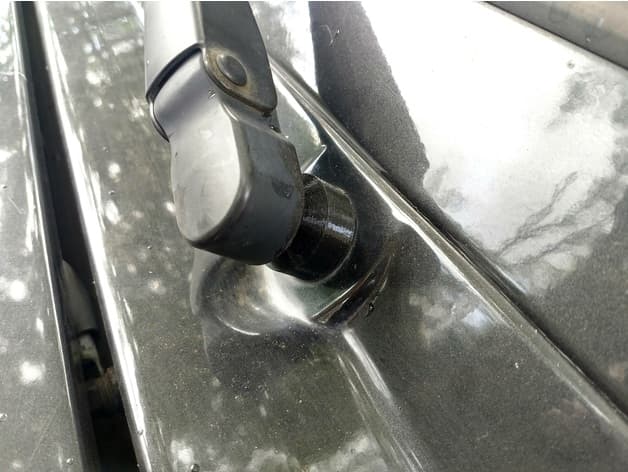

Small cover for the windscreen-wiper spindle nut on 1990s vehicles. The source shows the physical cover fitted around a wiper pivot and supplies one STL, but states no material or print settings. Match the spindle and nut dimensions, use weather-, UV- and heat-resistant material, preserve full wiper-arm clearance and verify complete sweep and secure retention before road use.

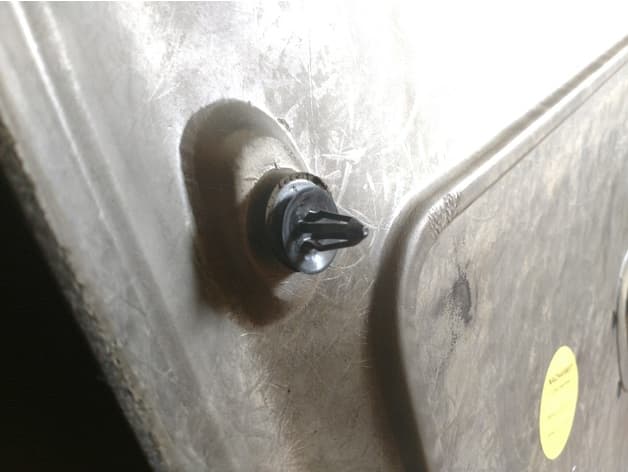

Replacement interior door-panel clip for 1990s vehicles. The source includes a physical image of the clip installed in the door-panel mounting point and a CAD render, but gives no material or print settings and no exact Mercedes child-component number. Match the original clip and panel hole, remove supports and sharp edges, press-fit without forcing brittle trim and confirm the panel is fully retained before driving.

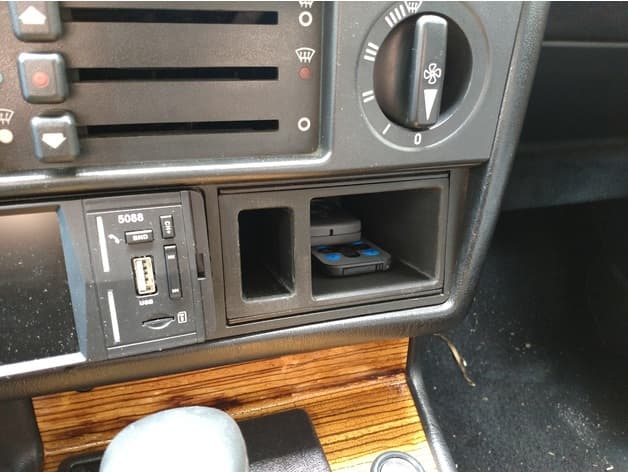

Storage tray for 1990s vehicles, shown fitted in the dashboard opening beside the audio unit. The author supplies divided and undivided STL variants plus the undivided STEP source. No material or print settings are stated. Compare the opening and adjacent switch/audio layout before printing, use material appropriate for cabin heat, deburr the retaining features and confirm the tray and stored objects cannot interfere with controls or become loose under braking.
