Mercedes-Benz CLK 3D-printable parts

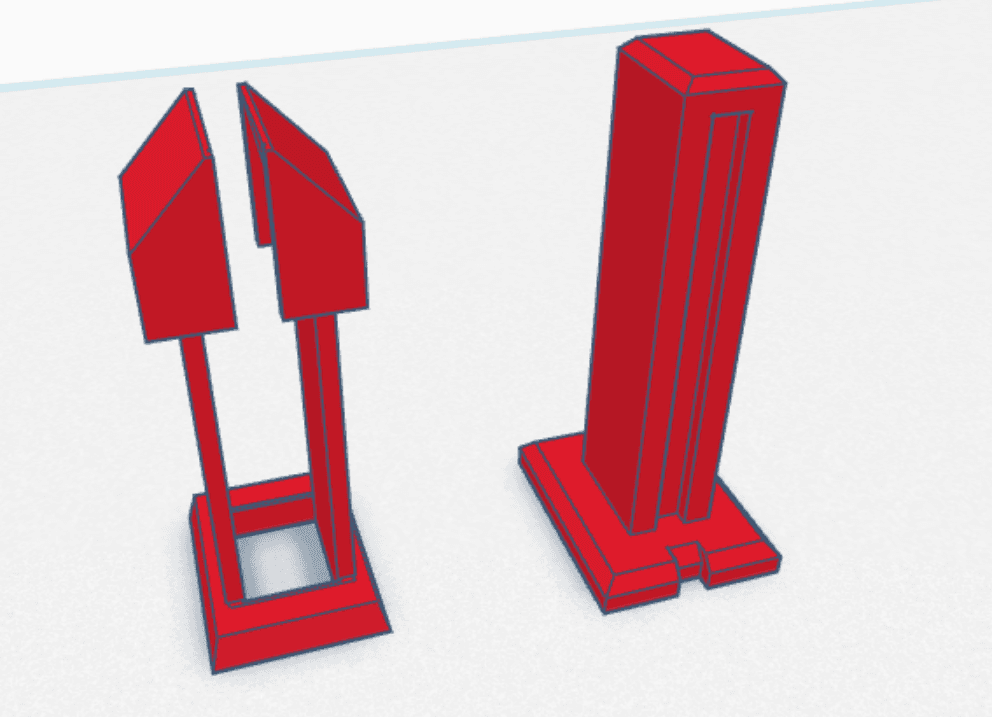

Replacement retaining clip for the luggage-compartment upholstery. The creator identifies the application as the CLK 209 series and describes the model specifically as a trunk-upholstery clip. No side, body-style, market, steering-side, engine, facelift, trim or option-code extension is claimed beyond the source-backed C209/A209 generation.

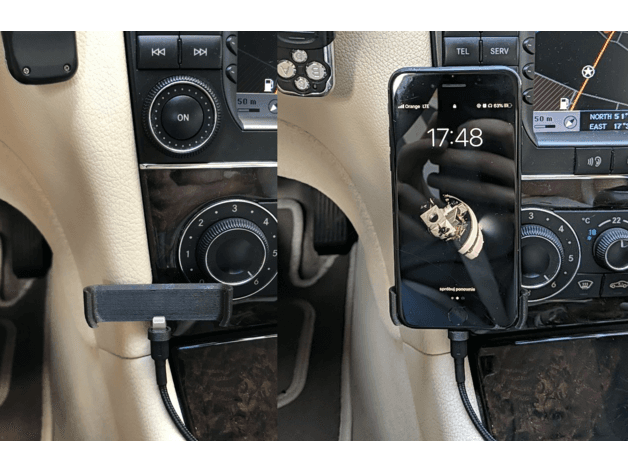

Two-piece phone holder and charging-cable bracket for the CLK 209 series, source-tagged by the creator for W209. The holder clips between the center-console side wall and the climate-control panel, accepts an iPhone 6, 7 or 8, and locates a Baseus charging cable so the phone charges when inserted. The creator explicitly warns against ordinary PLA because it can melt in a hot cabin. Fitment is not extended beyond C209/A209.

Replacement rear registration-plate lamp lens for the CLK 209 series. The creator supplies two verified author models: one version retains legs for the festoon bulb and one omits those legs. Print in clear filament; the creator recommends PETG rather than PLA for improved heat and weather resistance, a 0.2 mm translucent window, and silicone sealant around the rim to prevent water ingress. Fitment is source-backed only for the C209/A209 generation.

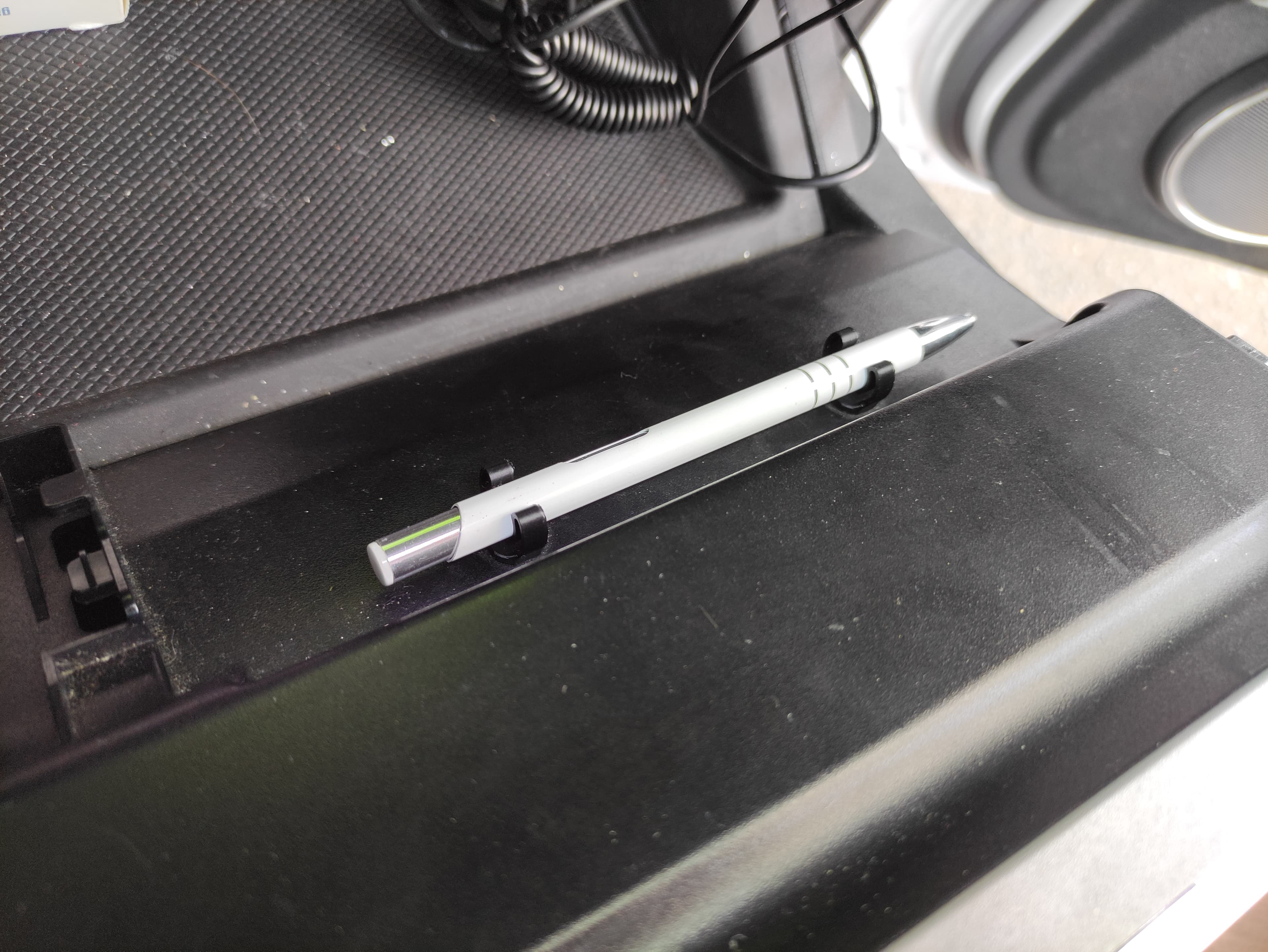

Strengthened replacement clip for the glovebox ballpoint-pen holder. The creator explicitly lists W169, W203, W204, W209, W212 and W245 fitment, shows the part installed and recommends ABS for cabin heat; W245 is absent from the live taxonomy. No body, market or production-break split is stated, so compare the original clip and glovebox recess before printing, fit without damaging the lid and confirm the pen and clip cannot detach into the footwell.

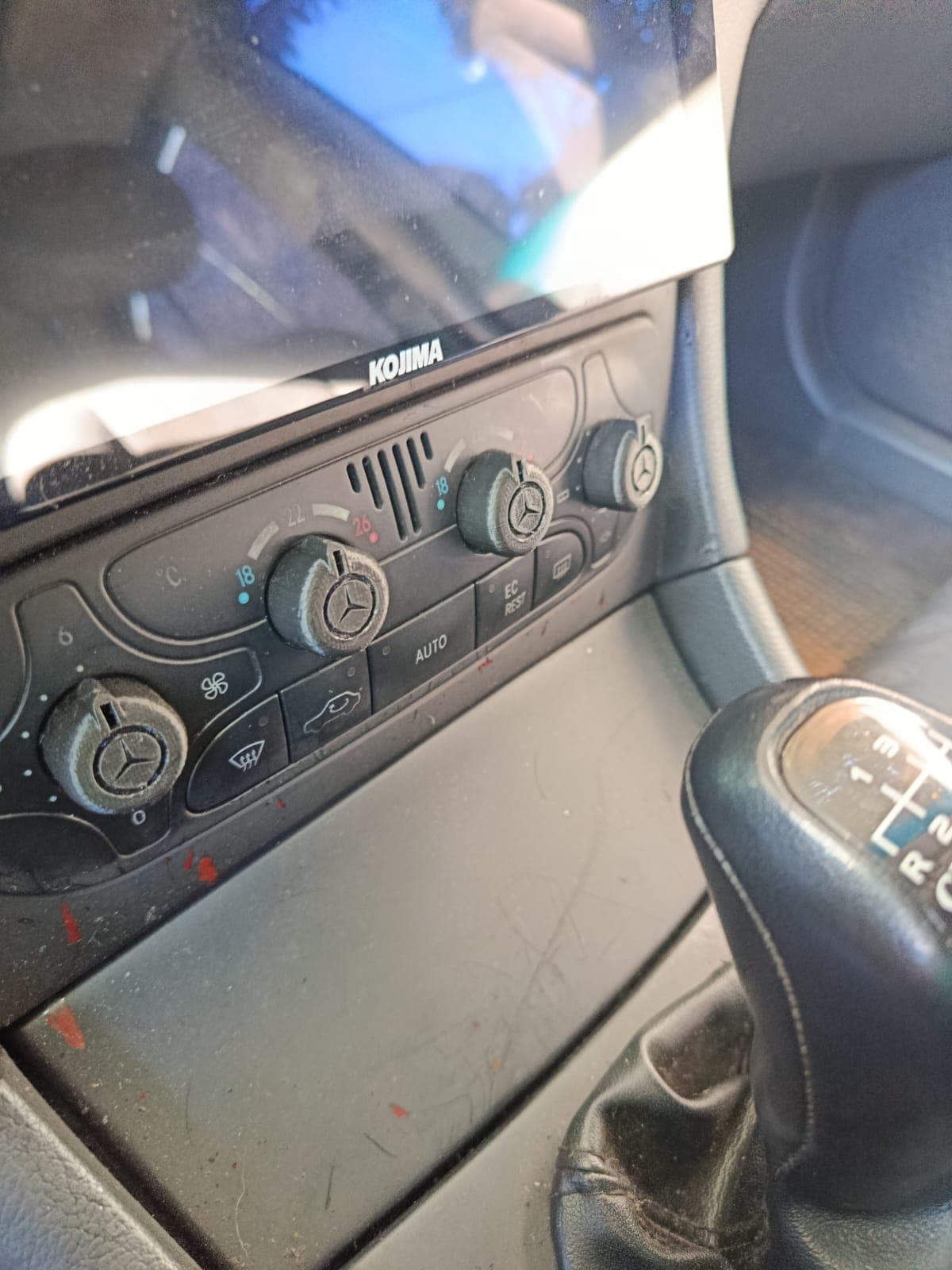

Replacement temperature-control dial using the original mount, with creator-stated W203 and W209 fitment and anchor variants for C220, C230 and C240 controls. The creator explicitly warns against PLA because cabin heat can warp it and recommends PETG or ABS. Compare the original shaft and control-panel version, retain the visible temperature reference and verify full smooth travel without binding before driving.

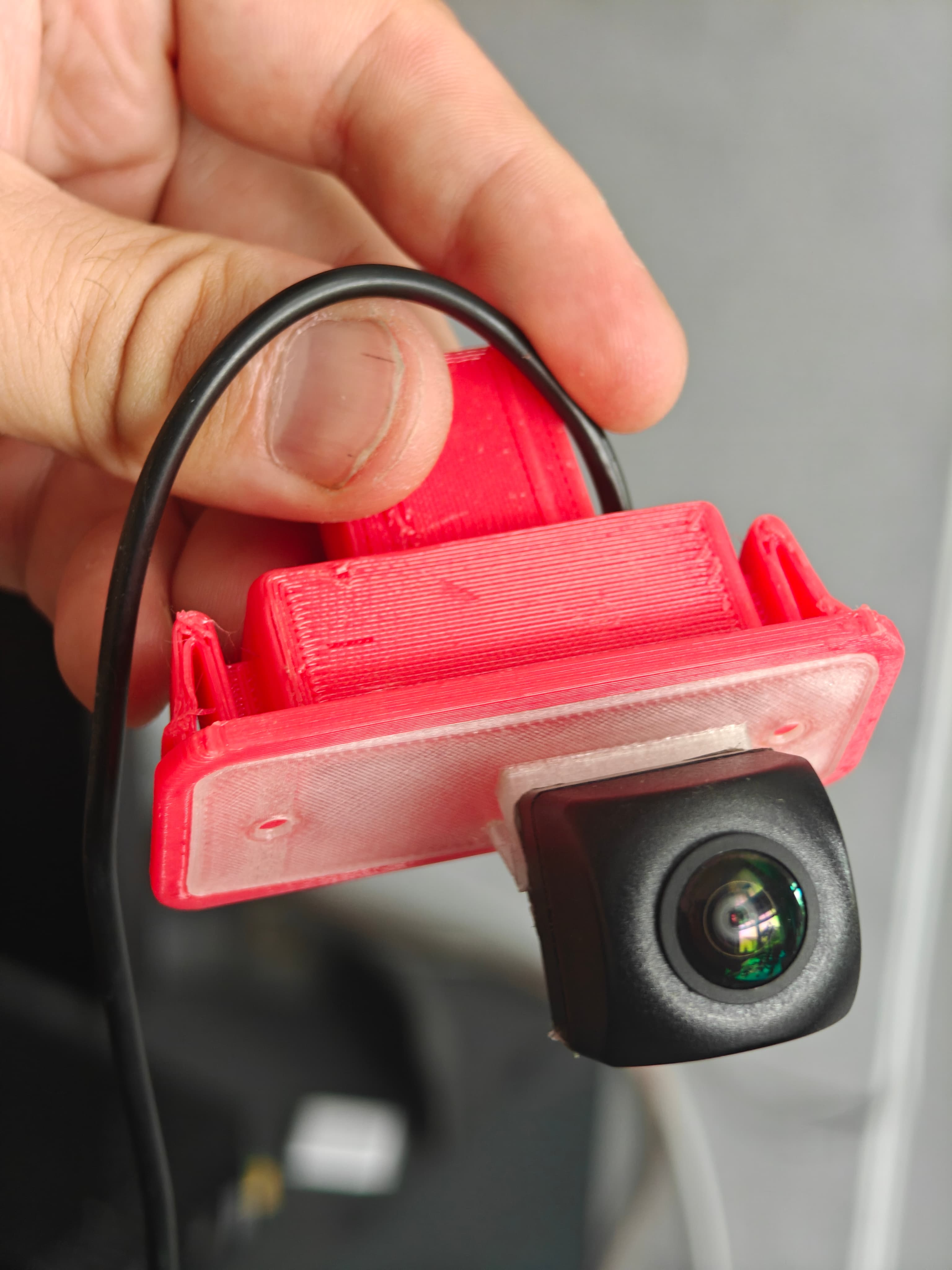

Transparent registration-lamp insert with a mount for the compact CVBS/AHD camera commonly supplied with aftermarket head units. The creator explicitly states W203 and W209 fitment and recommends transparent PCTG or PETG, aligned 100% infill, no top or bottom layers and ironing. Compare the lamp opening and camera body, seal cable entries, preserve required plate illumination and verify the insert cannot detach or leak into the boot lid.

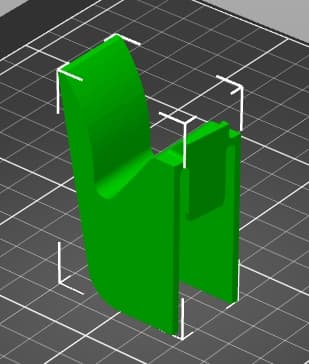

Replacement left retaining hook/clip for the rear trim panel of a front seat. The creator identifies the exact child as A2089130172 for the 208-series and states that the model can be mirrored in the slicer for the opposite side. Mercedes official evidence calls A2089130172 the left hook, and PartSouq search evidence corroborates its front-seat-trim function. The OEM number applies only to the supplied left-side geometry; no right-side number is inferred for a mirrored print. Seat type, upholstery and option differences can affect fit, so verify by VIN and compare the original before fitting.

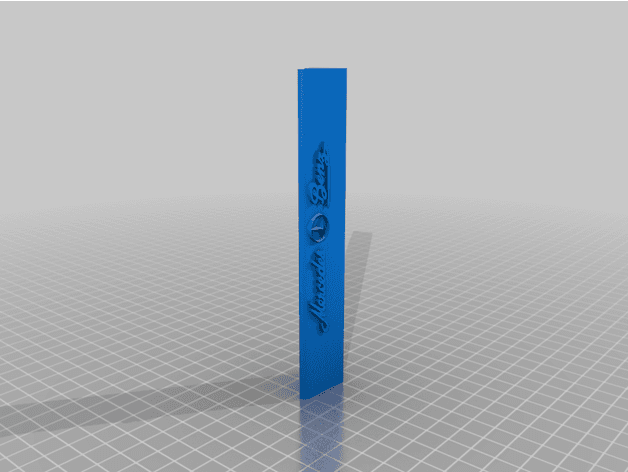

Second-version 150 mm phone holder published by the creator specifically for the CLK 208-series. The preserved source provides the author STL and a CAD image but no installed photograph, mounting instructions, material recommendation or body/facelift limitation. Compare the geometry and attachment area with the vehicle before printing, test retention at low speed, and keep the device clear of airbags, controls and the driver's sight line.

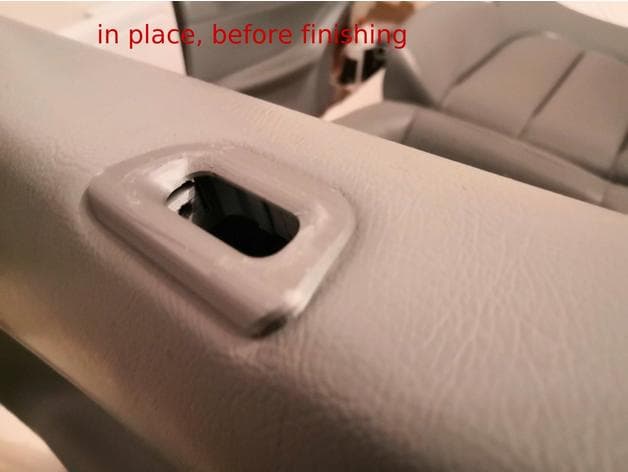

Replacement trim insert for the wind-deflector net opening of the late-1990s CLK convertible, modeled after the creator broke the original while removing the rear trim. The source shows the original and replacement together and the printed part installed. Mirror the supplied model in the slicer for the opposite side, then sand, prime and paint as needed. Transfer the original small flap and spring to the print; the creator does not publish a separately serviced Mercedes child number, so no wind-deflector or rear-trim parent assembly number is assigned. Confirm A208 trim and side geometry before installation.

Rear-position exterior cover for the side-skirt jacking opening, published for the CLK 208-series and shown installed on the creator's photographed coupe trim. Print vertically with supports and three wall lines to strengthen the hooks, using ABS or a similarly suitable material as the creator recommends. The source does not identify side, facelift, AMG/standard trim, option code or an exact molded number; compare the original opening and retainers before use. No OEM number is inferred from the cover's location.

Front-position exterior cover for the side-skirt jacking opening, published for the CLK 208-series and shown installed on the creator's photographed coupe trim. Print vertically with supports and three wall lines to strengthen the hooks, using ABS or a similarly suitable material as the creator recommends. The source does not identify side, facelift, AMG/standard trim, option code or an exact molded number; compare the original opening and retainers before use. No OEM number is inferred from the cover's location.

Replacement stop/buffer reproduced by the creator as A2107500326 and explicitly tagged for CLK 208-series and E-Class 210-series cars. Mercedes official evidence identifies this exact child as an Anschlag (stop), with independent parts evidence describing a deck-lid/trunk-lid buffer. The supplied geometry is labeled with A2107500326; the earlier A2107580944 supersession is not assigned to the print. C208 coupe and W210 body/production applicability can vary, so verify the exact child by VIN and compare the original before fitting. The source does not state material, installation torque or physical validation.

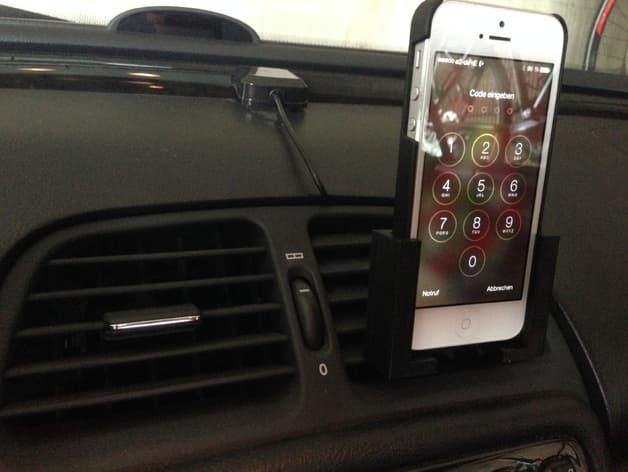

Passive phone cradle that the creator explicitly states fits the ventilation grilles of the CLK 208-series and E-Class W211 sedan. It snaps into the grille without tools or vehicle damage, accepts an iPhone with or without a case, and leaves a lower opening for a charging cable. The creator notes that the model may be scaled independently to suit other phones; scaling can also change the grille engagement, so confirm a secure, non-damaging fit before driving and keep the device clear of controls, sight lines and airbags.

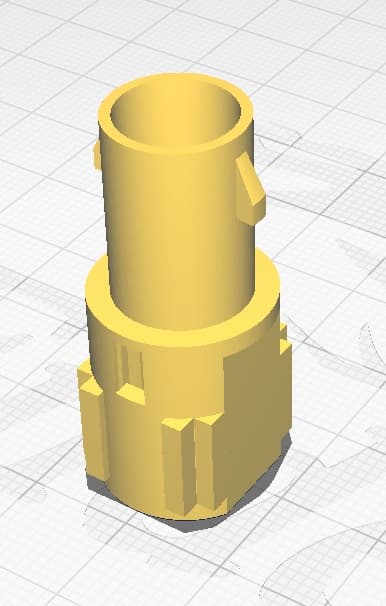

Replacement bulb socket for the clearance/parking lamp in the headlamp, explicitly identified by the creator as A2108260582 for 208- and 210-series cars. The source provides one author-downloadable STL and one CAD image but no physical fit photograph. Official Mercedes parts-store metadata identifies the exact child as the clearance-lamp socket for CLK 208 and E-Class 210. Verify VIN and headlamp variant, use heat- and flame-resistant electrically insulating material, transfer the correct contacts and bulb without damaging insulation, and test retention, polarity, lamp output, sealing and heat behavior before road use.
