Mercedes-Benz A-Class 3D-printable parts

Left and right replacement hinges for the rear parcel shelf. The original source supplies both handed files and a physical comparison image; a later credited remix explicitly identifies this original design as the W177 parcel-shelf hinge and retains the same interface while adding reinforcement. Print the original files on their flat sides at 0.16 mm, with four walls and no supports; the creator suggests fuzzy skin only on the four towers that enter the parcel shelf. A later source specifies PETG for this cabin/cargo application. Inspect layer adhesion and both pivots, confirm free movement, and avoid loading the shelf until both hinges are fully seated. No Mercedes number is assigned: A1776905400 identifies the complete parcel shelf, not either printed hinge child.

Three-piece organizer and lid system for the center-console storage compartment. The preserved author package names the main organizer and lid geometry for W177, and four author photographs show the parts installed and in use. No screws or bolts are required; the creator states that the hooks lock into place with light force. Use a cabin-heat-resistant material, test the hook engagement gradually, and verify that the lid and armrest open and close freely without pinching stored items or wiring.

Drop-in holder for a MagSafe-compatible wireless charger in the front storage cubby. The creator made and photographed it in a 2020 car and explicitly states W177 fitment. They also suggest same-generation W247, C118, H247 and X247 compatibility but require a visual cubby check; those lines are not among the live generations in this catalog, so only the tested W177 generation is linked. The model is sized around the charger identified on the source page and was designed for an S23 Ultra; verify phone, case, charger and cable clearance before printing. Place the largest face down and use supports. The creator recommends a cabin-heat-resistant material such as PET, PETG, ABS or ASA. Secure the cable and confirm the dock cannot obstruct controls or become loose while driving.

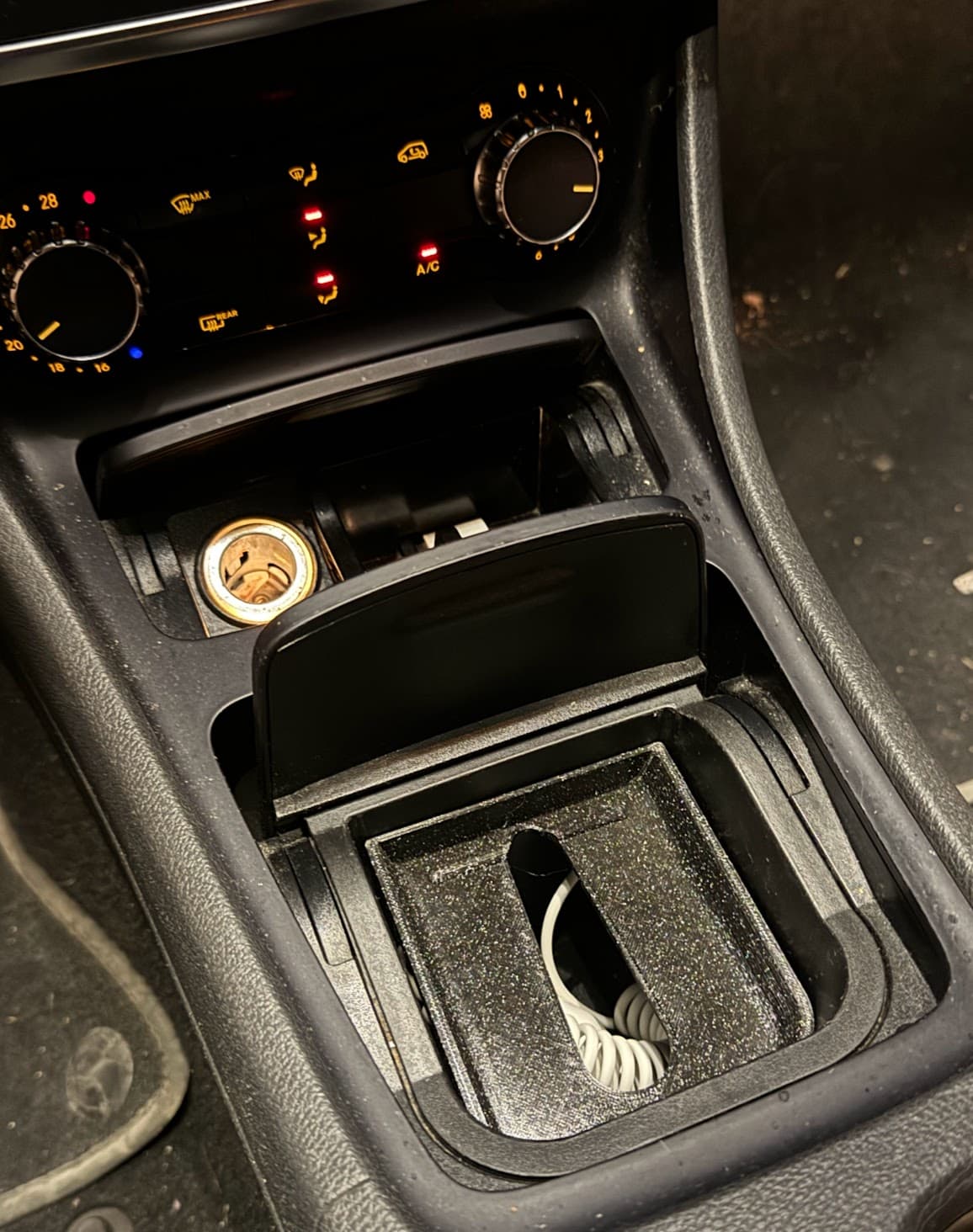

Two alternative phone-holder files designed to sit in the middle-console compartment for A180 and A200 variants. The creator states compatibility with iPhone and Android devices, simple installation, and support-free printing; source photos show the holder installed with a phone and charging cable. Choose one alternative file, verify a stable fit with the specific phone and case, use a cabin-heat-resistant material, and keep the device and cable clear of the selector and other controls.

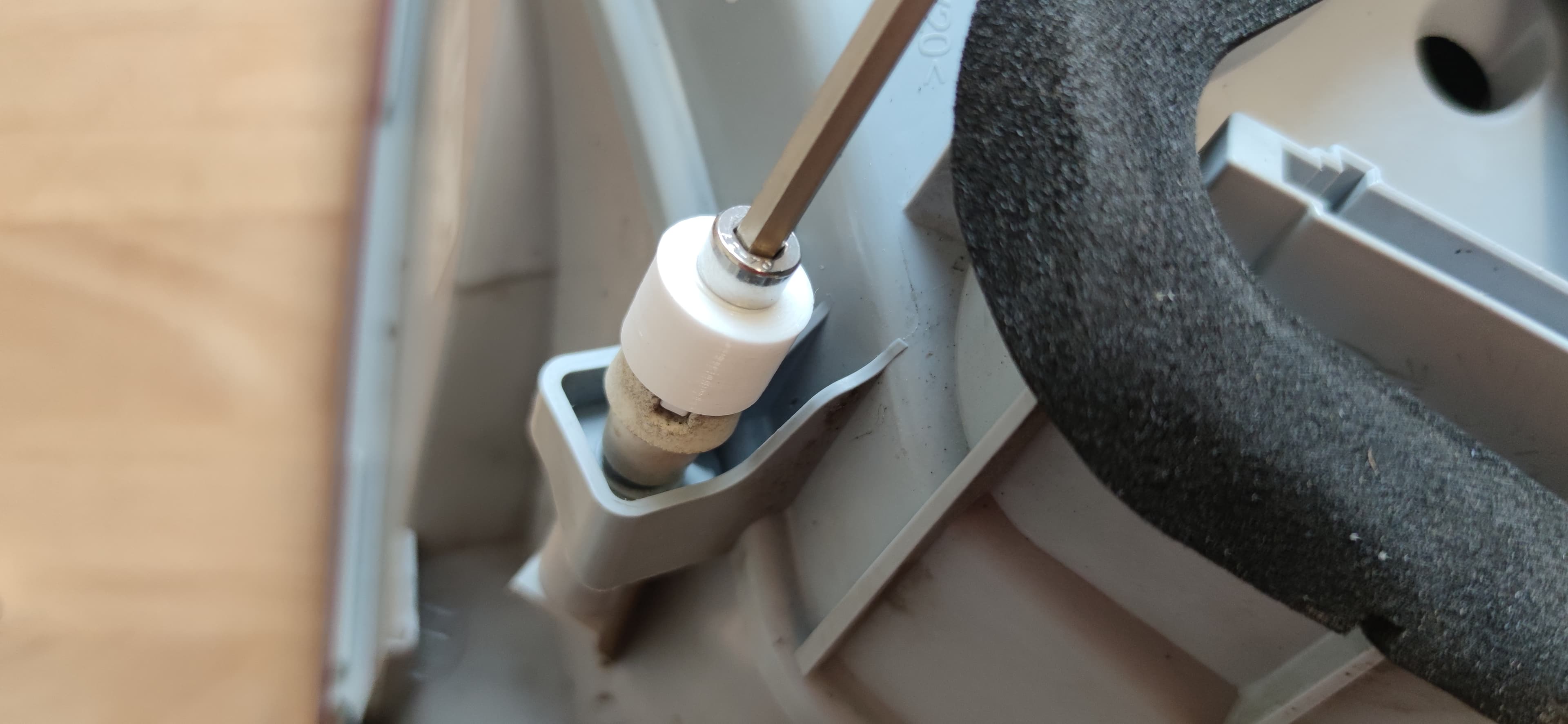

Small service adapter for more easily loosening and tightening the rear-lamp retaining fastener during bulb replacement. The creator specifies PETG plus an M5 heat-set insert, an M5×6 socket-head screw, and a DIN 9021 5.3×15 washer, and source photos show the assembled tool on the fastener. Use it only as a hand tool; do not overtighten the lamp fastener, and inspect the printed body and insert before each use.

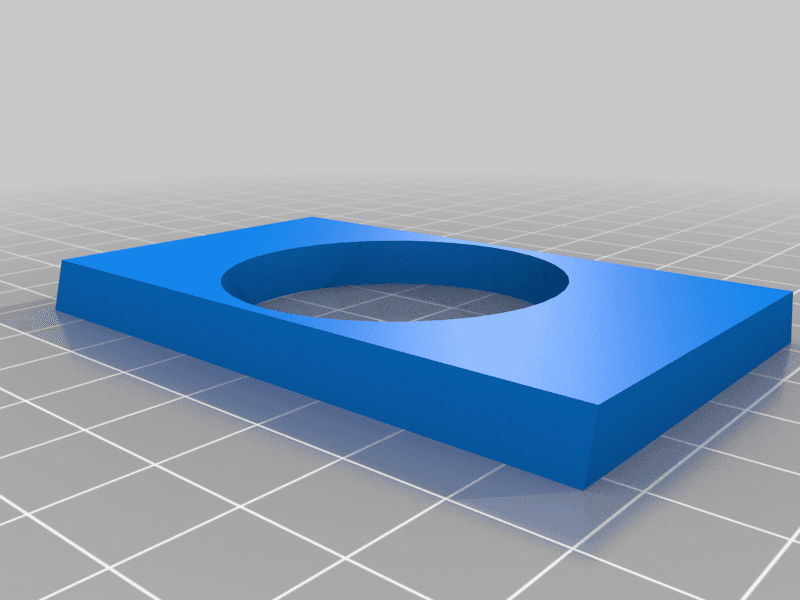

Simple insert that holds an Ooono traffic-alert device in the center-console ashtray. The creator identifies exact hatchback fitment; no steering-side, console-option, or facelift extension is stated. Confirm the ashtray dimensions before printing, use a cabin-temperature-capable material, ensure the device cannot become loose, and keep it clear of the selector and all driving controls.

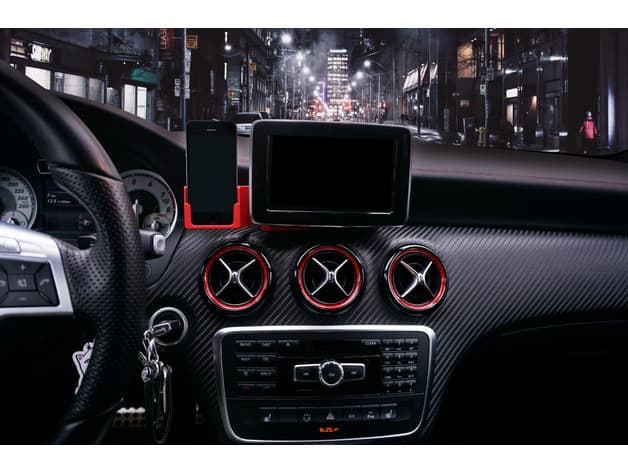

Phone holder designed to fit beside the dashboard display. The author supplies a base holder and phone-specific variants for iPhone 11, iPhone 8 Plus, and the 2016 iPhone SE, and shows a physical holder fitted in the vehicle. The creator used heat-resistant Extrudr GreenTEC rather than ordinary PLA, which can soften in a hot cabin. Choose only the matching variant, confirm secure retention, and keep the device clear of the driver’s view, controls, airbags, and ventilation.

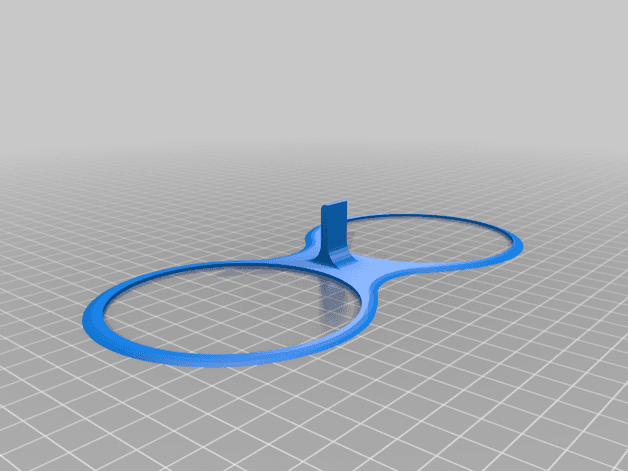

Phone-mount adapter designed for the two center dashboard vents and used by the creator with a uGreen magnetic mount. The source identifies exact hatchback fitment and provides the printable adapter; the mating phone mount is not included. Print in ABS as specified by the creator, verify that the adapter does not crack or loosen, maintain airflow, and position the phone so it cannot obstruct the road view, controls, display, or airbags. The source GNU GPL v2 licence is represented by the API’s other licence value.

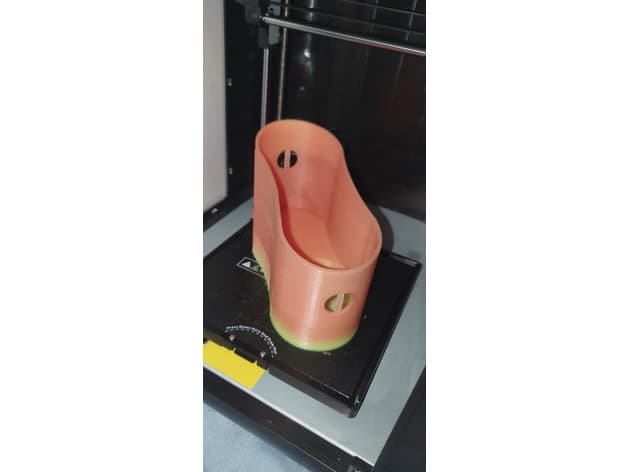

Removable bottle-holder insert designed from the center-console compartment in a 2017 hatchback. The creator states that the original center divider must be removed and that the two holes allow the insert to be lifted out for cleaning. Fitment evidence is limited to the 2017 example; no steering-side, trim, or facelift extension is inferred. Use a cabin-heat-resistant material, verify that bottles remain stable, and remove the insert if it interferes with nearby controls.

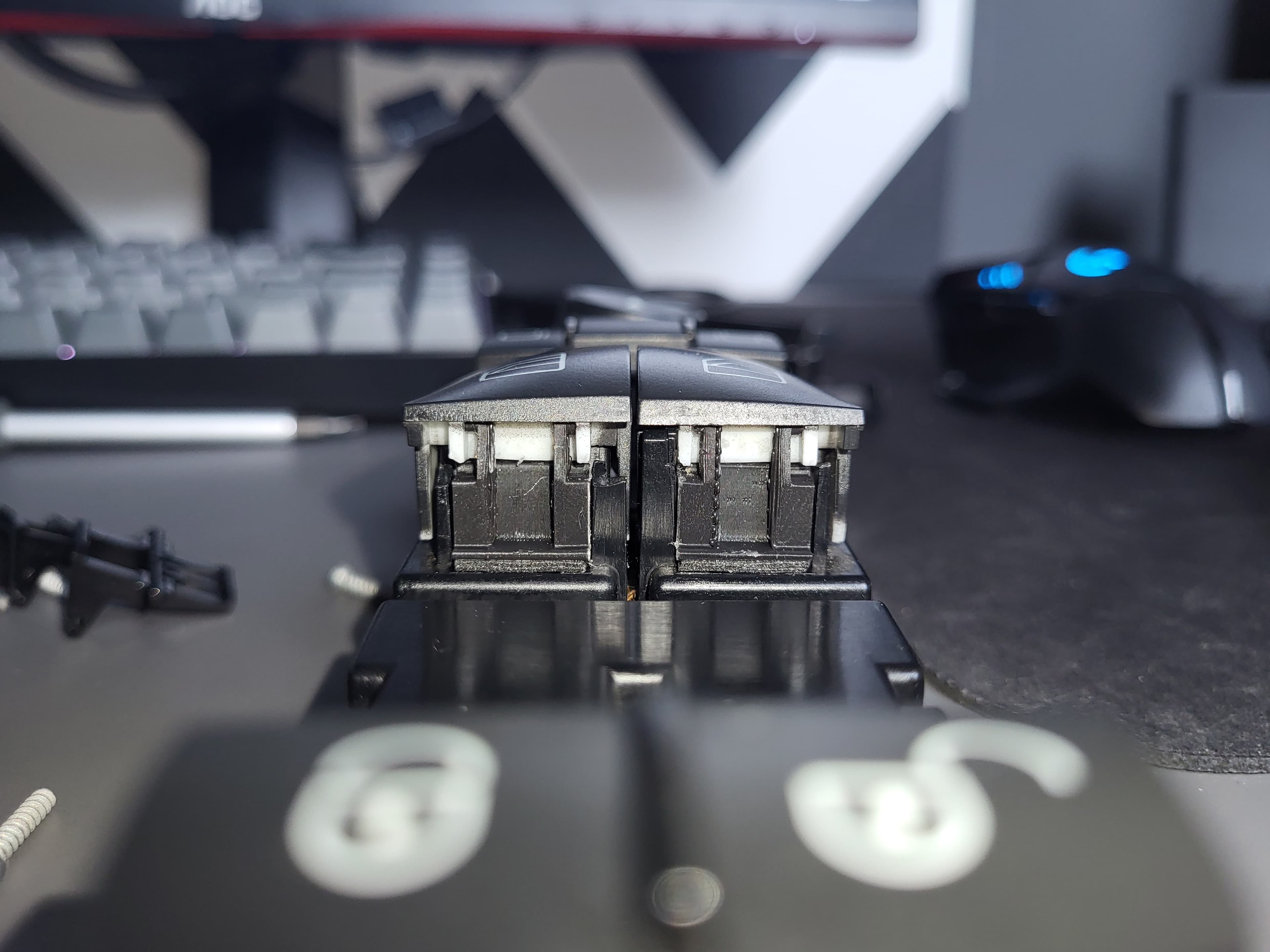

Replacement hinge inserts for the power-window actuator switches, supplied as distinct driver- and passenger-side files because the locating pins are different sizes. The creator shows the printed parts with the original switch housing and secures each insert with double-sided tape on its back and bottom surfaces. Use a heat-resistant material, select the correct side, keep adhesive clear of contacts and moving surfaces, and confirm normal switch return and window operation before refitting the door controls.

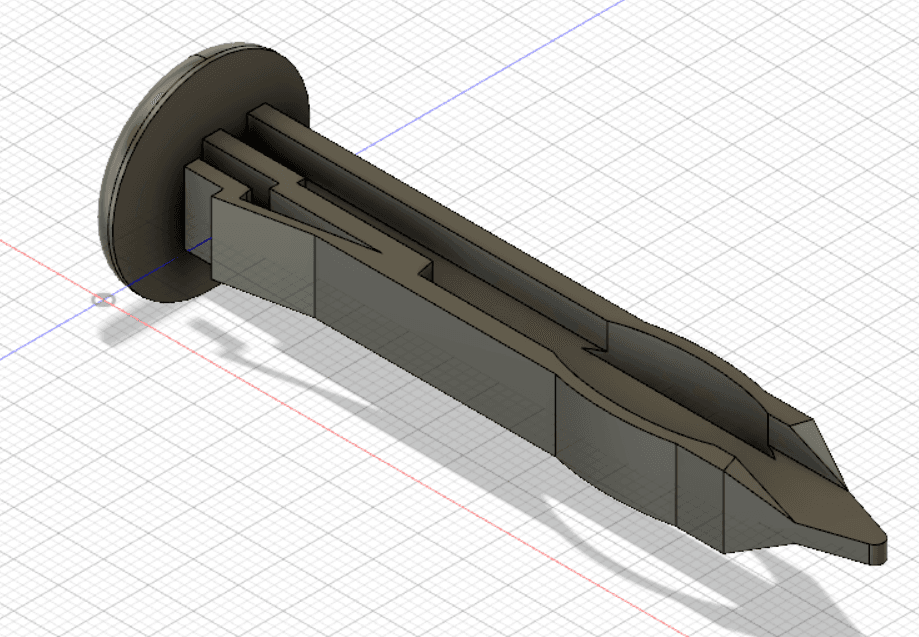

Replacement retaining clip/cover for the front door trim panel. The creator explicitly identifies both the A-Class application and exact child-component number A1697270014; independent genuine-parts listings corroborate it as the left/right front door-card trim clip also used on the B-Class W245, which is absent from the live taxonomy. Verify trim colour and socket geometry against the removed clip, press the panel home without forcing it, and replace the print if the panel is not held securely.

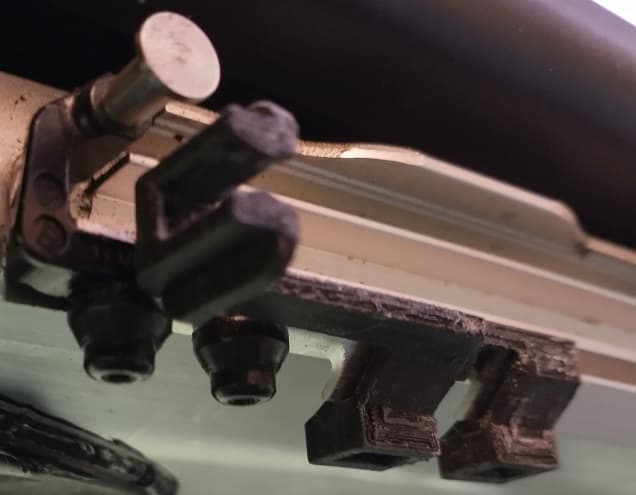

Left- and right-hand side guides for the inner shade of the factory lamella sunroof. The creator explicitly describes these as the second-version guides from a 2009 vehicle; do not treat them as universal for other roof systems, years or guide revisions. The files are separate side variants. Compare the original guide profile and orientation before printing, use a heat-resistant low-friction material, test shade travel gently by hand, and discontinue use if the guide binds, sheds debris or interferes with roof movement.

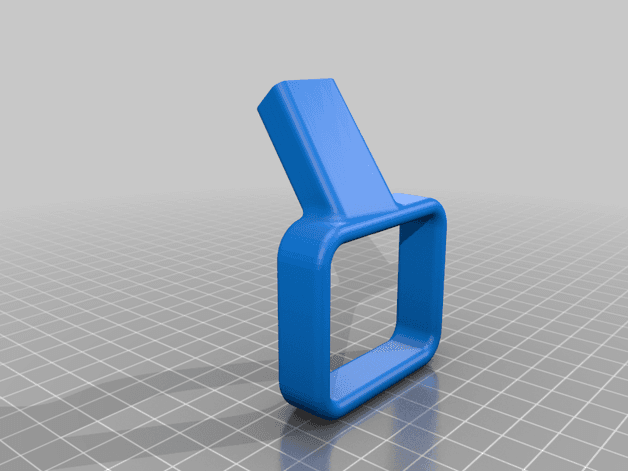

Direct-replacement manual seat adjustment handles supplied as separate left- and right-hand files. The creator designed them for a 2007 vehicle and identifies the right-hand component as original part A1699190661; Mercedes genuine-parts and PartSouq listings corroborate that number as the right-side seat-adjustment lever. The OEM number applies to the right-hand file only. Use a tough, heat-resistant material, compare the mounting socket and travel with an intact handle, and verify that the seat locks positively in every tested position before driving.

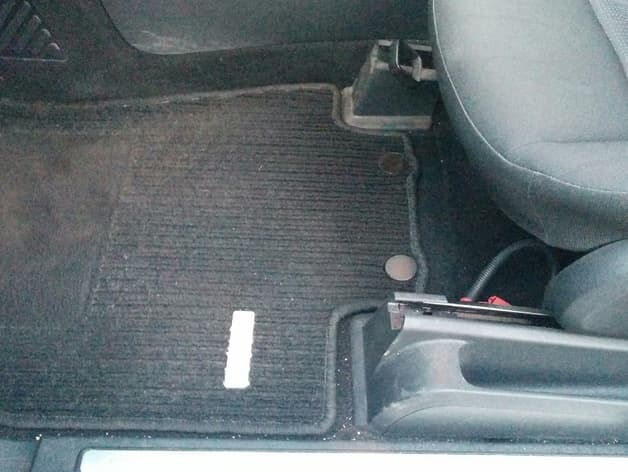

Two-piece retaining clip for the driver's floor mat. The creator designed and tested it on a 2011 vehicle, states that the two halves permanently snap together through the mat, and notes that removal from the floor takes slightly more force than the original. The source print used PLA with a 0.4 mm nozzle, no raft and no supports; for sustained cabin heat, prefer an automotive-temperature-capable material. Confirm that both halves are fully locked, that the mat cannot slide toward the pedals, and stop using the print if it loosens or cracks.

Strengthened replacement clip for the glovebox ballpoint-pen holder. The creator explicitly lists W169, W203, W204, W209, W212 and W245 fitment, shows the part installed and recommends ABS for cabin heat; W245 is absent from the live taxonomy. No body, market or production-break split is stated, so compare the original clip and glovebox recess before printing, fit without damaging the lid and confirm the pen and clip cannot detach into the footwell.

Replacement fascia panel for the dashboard radio opening. The creator explicitly identifies the first-generation A-Class application and supplies a single printable panel. Verify radio and dashboard opening dimensions before printing and retain clearance for wiring, ventilation, controls and removal access.

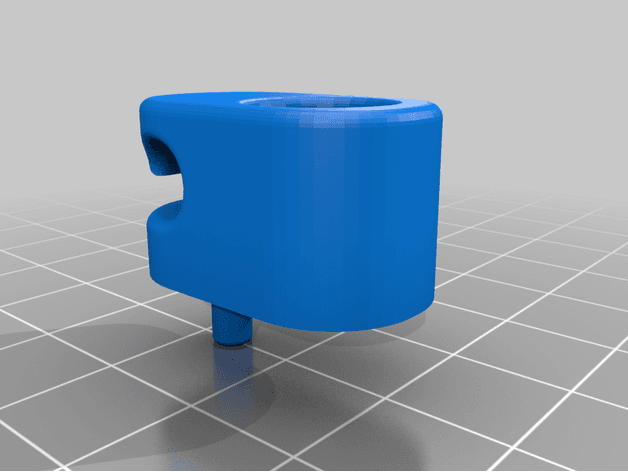

Holder for shopping bags in the boot. The download includes an original-form replacement and a strengthened alternative intended for heavier modern bags. Choose one variant rather than installing both, confirm that it seats in the original mounting point, and keep loads modest enough not to damage the surrounding trim.

Replacement retaining clip for the door weatherstrip/seal. The creator designed it after the original clip broke and reports that it performs nearly as well as the original component. Use an automotive-temperature-capable material, compare the printed clip against an intact original before installation, and replace it if the seal is not held securely.
