Exterior — 3D-printable Mercedes-Benz parts

Free STL files in the exterior category. Print at home in PLA, PETG, ABS or Nylon.

66 PARTS6 SUBS
01Subcategories
6
02In stock
66 parts
Part1573
Mirror-Adjustment Handle

Mirror-Adjustment Handle

Two-piece handle and lock for the 5 mm manual driver-side mirror adjustment rod. The creator explicitly states W123, W124, W201 and W126 fitment. Use tough cabin material, check the rod diameter and locking engagement, and confirm full mirror travel without forcing the cable or mechanism.

ABS · Nylon · PETGMirrors
Fits190 Series W201 · E-Class W124 / S124 / C124 / A124 · S-Class W126 / C126 · W123 Series W123 / S123 / C123
024by Ward Vandenbroucke (WvdbID)
Part1645
Windscreen-Wiper Spindle Nut Cover

Windscreen-Wiper Spindle Nut Cover

Small cover for the windscreen-wiper spindle nut on 1990s vehicles. The source shows the physical cover fitted around a wiper pivot and supplies one STL, but states no material or print settings. Match the spindle and nut dimensions, use weather-, UV- and heat-resistant material, preserve full wiper-arm clearance and verify complete sweep and secure retention before road use.

ABS · Nylon · PETGWipers & washers
FitsG-Class W463
07by Ebo Lompedo (Ebolompedo)
Part1621
Front-Right Sill-End Cap

Front-Right Sill-End Cap

Replacement cover for the front-right opening in the side-member/sill cladding. Source photographs show the installed location, the original and printed pieces, and the CAD model. EPC evidence identifies the right-front covering; use UV-, weather- and impact-resistant material, inspect the mounting opening for corrosion, and confirm the cap remains secure.

ABS · Nylon · PETGBody panels & exterior trim
Fits190 Series W201
06by slyd1ck
Part1784
Fuel-Cap Retaining Tether

Fuel-Cap Retaining Tether

Three-part retaining tether for the fuel cap, explicitly shown by the creator on an R171 and described as fitting many Mercedes fuel caps. The design comprises a cap ring, flexible cord, and eyelet. The source used ASA for the ring and hard Shore D56 TPU for the cord and eyelet, while noting that approximately Shore A95 TPU may also work. Install all three parts, verify the ring does not interfere with cap sealing or locking, keep the tether clear of the filler neck and hinge, and replace it if fuel exposure, heat, or repeated flexing causes cracks or loss of retention. No other generation is linked because the creator does not identify one and no exact child-component number was established.

TPUDoors, bonnet, boot & bed hardware
FitsSLK / SLC R171
05by Gerhard A. (Gerry0)
Part1615
Tow-Eye Cover Retaining Clip

Tow-Eye Cover Retaining Clip

Retaining clip with a safety tab for one side of the front towing-eye cover; the creator instructs mirroring the model for the opposite side. Only CAD/source screenshots are available, so compare the original cover and clip geometry carefully. Use UV-, weather- and impact-resistant material and confirm the cover remains retained at road speed.

ABS · Nylon · PETGBumpers, grilles & guards
Fits190 Series W201
04by blablablub
Part1742

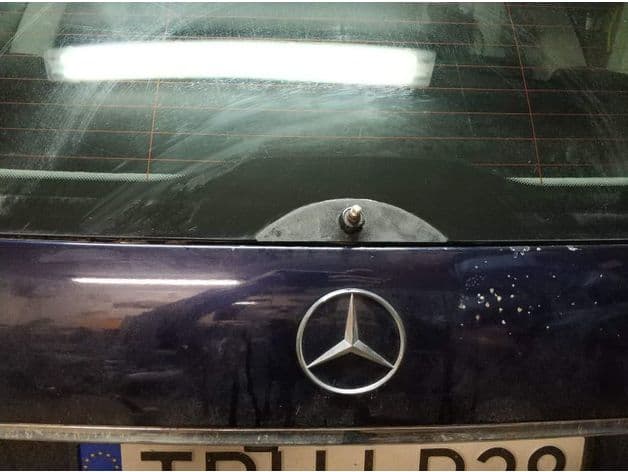

Estate Rear-Wiper Shaft Cover

Estate Rear-Wiper Shaft Cover

Exterior rear-window cover for the estate body, replacing the corroded metal cover around the rear-wiper shaft. Bond with automotive glass adhesive or sealing silicone and retain the source-stated estate-only fitment.

ABS · PETGWipers & washers
FitsE-Class W211 / S211
03by Krzysztof Tkacz (truten23)
Part1689
Front Side-Skirt Jacking-Point Cover

Front Side-Skirt Jacking-Point Cover

Front-position exterior cover for the side-skirt jacking opening, published for the CLK 208-series and shown installed on the creator's photographed coupe trim. Print vertically with supports and three wall lines to strengthen the hooks, using ABS or a similarly suitable material as the creator recommends. The source does not identify side, facelift, AMG/standard trim, option code or an exact molded number; compare the original opening and retainers before use. No OEM number is inferred from the cover's location.

ABSBody panels & exterior trim
FitsCLK C208 / A208
03by Kamil_Jarek
Part1656
Third-Brake-Lamp Support

Third-Brake-Lamp Support

Support for the interior third brake lamp, shown as a physical print and fitted at the base of the rear window. The source does not state body-style, market or production-break coverage, so compare the lamp, parcel shelf and rear-glass profile before printing. Use UV- and cabin-heat-resistant material, preserve the full illuminated area and wiring clearance, secure the lamp against vibration and verify operation and rear visibility before road use.

ABS · Nylon · PETGExterior lighting, cameras & sensors
FitsC-Class W202 / S202
03by Carlos Ortiz (CarlosMaza)
Part1636
Tail-Lamp Bulb-Carrier Retaining Clip

Tail-Lamp Bulb-Carrier Retaining Clip

Replacement sliding clip that retains the rear-lamp bulb-carrier assembly. The creator removed the reflector, installed the printed clip, lubricated its sliding faces and reports that it holds the carrier in place. The stated 1298201577, 1298200577 and 1298200677 numbers identify complete lamp assemblies, not this printed child, so they are not assigned. Print with the circular opening toward the bed, use ABS or another heat- and weather-resistant material, verify smooth clip travel and carrier retention, then test every rear lamp before driving.

ABS · Nylon · PETGExterior lighting, cameras & sensors
FitsSL R129
03by Preador
Part1579
Jacking-Point Protective Plug

Jacking-Point Protective Plug

Protective body plug test-fitted in a 123-series jacking point. The creator printed it in ABS with three flex slots and advises rust protection inside the jacking tube before installation. This is a dust and appearance plug only: remove it before using the factory jack, never treat it as a lifting pad, and inspect the jacking point for corrosion before lifting. The source mentions reference number 2018990008, but no exact EPC child-component record was independently recovered, so no OEM number is assigned.

ABS · Nylon · PETGBody panels & exterior trim
FitsW123 Series W123 / S123 / C123
03by Layers Engineering (liviu_m2002)
Part1841
Rear Dash-Camera Headliner Mount

Rear Dash-Camera Headliner Mount

Clip-on rear-camera mount developed for the estate headliner and a Vantrue N4/N5 RC-01 rear camera. It clamps between the headliner and roof sheet without screws or holes and is shown installed clear of the tailgate. Fitment is limited to the estate body. Protect the headliner, keep the camera and cable clear of airbags, visibility and tailgate travel, and verify the mount cannot detach.

ABS · NylonExterior lighting, cameras & sensors
FitsC-Class W205 / S205 / C205 / A205
02by Mommel
Part1673
Right Mirror-Motor Cover

Right Mirror-Motor Cover

Replacement cover plate for the motor inside the right exterior mirror, designed for model years 1998–2004 after a purchased spare did not fit. The source provides one STL and a CAD source image but no physical fit photograph. The creator warns that PLA breaks easily where the motor-screw heads press into the plate. Restrict use to the right mirror and matching motor, print flat-side down in tough cabin-heat- and weather-resistant material, fit screw heads gently and verify mirror adjustment, retention and full housing clearance.

ABS · Nylon · PETGMirrors
FitsSLK / SLC R170
02by John Doe (emaringr)
Part1670
Rear-Door Magnetic Bumper Housing

Rear-Door Magnetic Bumper Housing

Replacement housing for the rear-door magnetic bumper on 2002–2006 vans. The creator cites original reference 901 740 03 16 but explicitly says this geometry is not an exact match; therefore that number is preserved only as a reference and is not assigned. Printing requires a layer pause to encase the reused original metal components, with TPU 64D or 95A specified. Inspect rust expansion, clean and protect the metal parts, confirm door alignment and magnetic retention and verify the housing cannot detach or interfere with complete door latching.

TPUDoors, bonnet, boot & bed hardware
FitsSprinter W901–W905
02by toltych
Part1640
Body-Cladding Sliding Clip

Body-Cladding Sliding Clip

Replacement sliding clip for the upper row of the lower door/body cladding, developed and tested on a 1999 roadster. The creator reports more than three months of exterior Texas use from 27–44 °C and testing to 233 km/h, specifies vertical print orientation, grid infill and 15% infill, and warns that higher infill reduced performance. The creator was told that similar cladding on 124- and 140-series cars may use it but could not confirm that fitment, so no cross-generation link is added. Compare the original upper clip and cladding rail, use UV-, heat- and impact-resistant material and confirm the panel remains secure at road speed.

ABS · Nylon · PETGBody panels & exterior trim
FitsSL R129
02by Lick2Trip
Part1637
High-Mounted Stop-Lamp Access Knob

High-Mounted Stop-Lamp Access Knob

Replacement knob for the access cover on the high-mounted stop-lamp assembly. The creator instructs removing the broken knob base, bonding this print in its place and printing sideways for strength. The cited 1297500039 number identifies the surrounding lamp-cover assembly rather than this repair fragment and is not assigned. Use cabin-heat- and UV-resistant material, choose adhesive compatible with the original plastic and verify that the cover remains secure and the stop lamp operates correctly.

ABS · Nylon · PETGExterior lighting, cameras & sensors
FitsSL R129
02by Preador
Part1613
Wiper-Linkage Drive Gear

Wiper-Linkage Drive Gear

Replacement gear for the single-arm windscreen-wiper mechanism. The creator documents the dismantled mechanism, press-fitting the gear after heating the splined shaft, and specifies nylon at 100% infill. Treat this as a mechanism repair: compare tooth count and shaft profile, preserve alignment and lubrication, and bench-test full travel, parking and stall behavior before wet-road use.

NylonWipers & washers
Fits190 Series W201
02by Exotechd
Part1603
Tow-Eye Cover Retaining Clip

Tow-Eye Cover Retaining Clip

Replacement trim clip for the towing-eye cover on a 126-series car. The preserved author archive supplies the model, licence and exact fitment, while the only source image is a CAD render and no physical make is shown. Compare the original clip and cover position, use UV- and weather-resistant material, and confirm the cover cannot loosen into traffic.

ABS · Nylon · PETGBody panels & exterior trim
FitsS-Class W126 / C126
02by GryKyo
Part1593
Washer-Pump Reservoir Grommet

Washer-Pump Reservoir Grommet

Flexible grommet sealing the windscreen-washer pump to the reservoir on a 300D. The creator specifies flexible filament and 100% infill. Clean the reservoir opening, compare both pump and tank diameters, use washer-fluid-compatible TPU and confirm a leak-free seal before closing the bonnet.

TPUWipers & washers
FitsW123 Series W123 / S123 / C123
02by marenextdoor
Part1591
Headlamp Mounting Nut

Headlamp Mounting Nut

Replacement headlamp mounting nut shown beside the original physical component. Compare the thread, diameter and lamp position before use, print in heat- and weather-resistant material, tighten only to the original retention load and verify headlamp aim and stability after installation.

ABS · NylonExterior lighting, cameras & sensors
FitsW123 Series W123 / S123 / C123
02by Dmitri Soloviev (dmisol)
Part1584
Number-Plate Lamp Frame

Number-Plate Lamp Frame

Replacement frame for a broken rear number-plate lamp, also usable as a cutting guide for a new seal. The creator states fitment across 123-series variants. Use UV- and heat-resistant material, preserve the original lens, bulb holder and wiring, install an appropriate gasket and confirm lamp visibility, weather sealing and wire clearance.

ABS · Nylon · PETGExterior lighting, cameras & sensors
FitsW123 Series W123 / S123 / C123
02by Bundes-Metal-Minister (Bundes-Metal-Minister)
Part1765
Washer-Reservoir Cap

Washer-Reservoir Cap

Flexible 74 mm replacement cap for the windscreen-washer reservoir. The creator measured the original, recommends TPU and notes that a 98% scale may improve fit; source photographs show it installed. Verify the reservoir neck diameter, print in washer-fluid-, heat- and weather-resistant flexible material, and confirm the cap seats securely without obstructing filling or venting.

TPUWipers & washers
FitsSprinter W901–W905 · Sprinter W906 · Vito / Viano / V-Class W639
01by moWerk
Part1761
Bonnet Support-Strut Clip

Bonnet Support-Strut Clip

Replacement retention clip for the bonnet support strut. The author supplies printable STL and editable STEP geometry plus a source photograph of the physical clip. Use engine-bay-temperature- and weather-resistant material, compare the strut diameter and mounting profile, and confirm the strut is retained when stowed without weakening or interfering with bonnet support or latching.

ABS · NylonDoors, bonnet, boot & bed hardware
FitsVito / Viano / V-Class W639
01by Chris Findlay (CFin)
Part1719

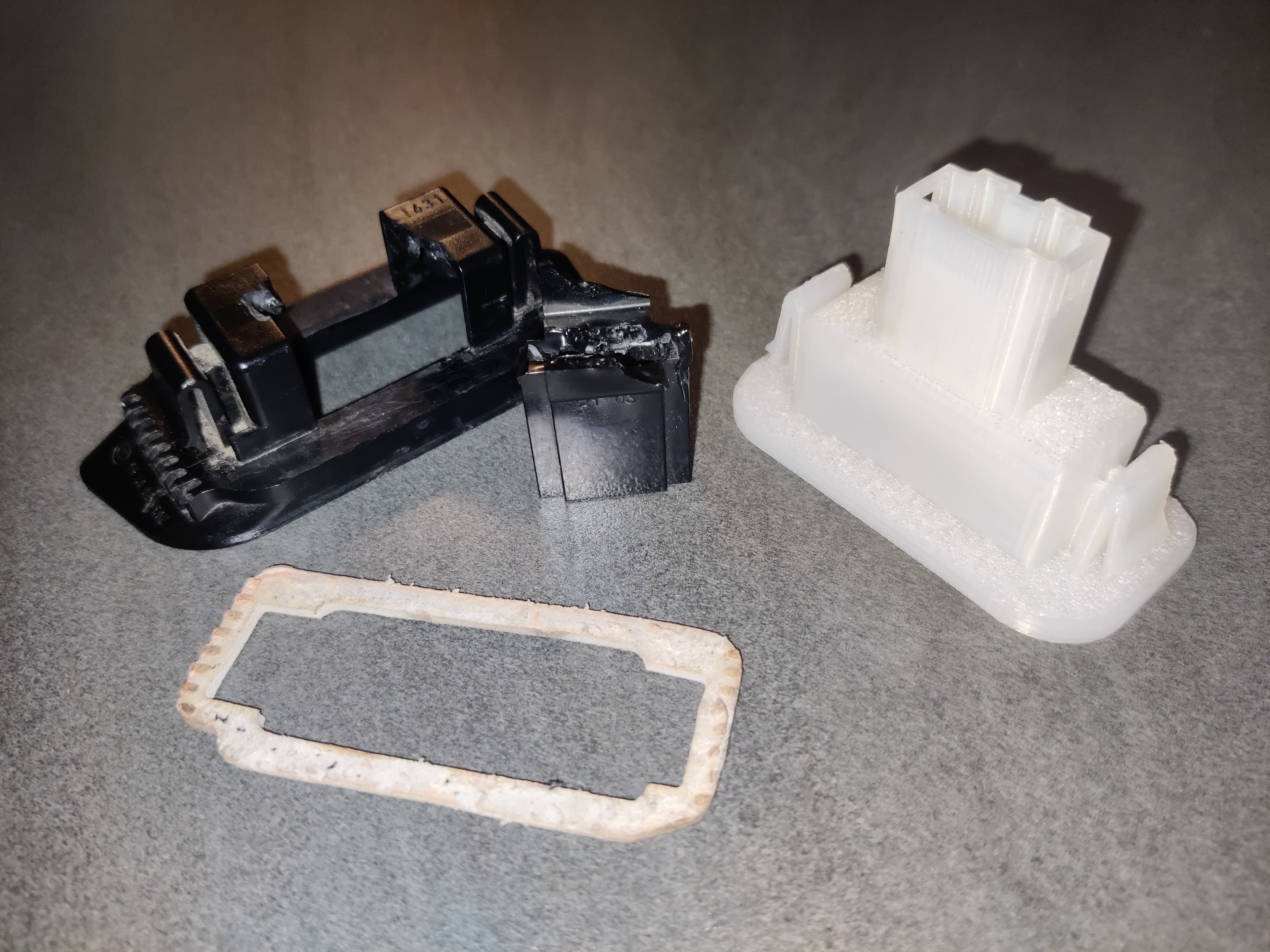

Registration-Plate Light Housing Set

Registration-Plate Light Housing Set

Standard and reverse-camera variants of a registration-plate light housing, designed to compress the reused approximately 2 mm gasket against the body. The creator used nylon and states the source reference as 'A 203 802 07 56'; independent Mercedes and PartSouq evidence identifies A2038200756 as the complete CL203 lamp housing, but it is not assigned because this canonical source includes a modified camera variant and the creator's number is transposed. Compare the original housing, gasket, connector and body style, use weather- and heat-resistant material, seal against water and verify illumination, camera view and boot-lid operation.

ABS · Nylon · PETGExterior lighting, cameras & sensors
FitsC-Class W203 / S203 / CL203
01by fredx30
Part1697
Rear-Bumper Opening Cover Variants

Rear-Bumper Opening Cover Variants

Two author variants of the left/right rear-bumper opening cover for the pre-facelift (phase 1) vehicle. Source photographs show loose printed covers and installed results. Fitment is not established for facelift bumpers or alternative bumper packages; compare the opening, tabs and side before printing.

ABS · PETGBumpers, grilles & guards
FitsM-Class / GLE W163
01by Diolum

24 of 66 shown
