Mercedes-Benz Vito / Viano / V-Class 3D-printable parts

Insert replacing the Peiker phone-preparation module position between the 12 V socket and original USB/MMI panel in the centre console. The creator verified it on a V-Class with that exact console layout and warns that other Vito variants must be compared by photographs and the stated 72 × 129 × 12 mm dimensions. Use ASA as recommended, or ABS; PETG is only cautiously suggested and PLA is excluded. Fit a dimensionally compatible MagSafe/Qi charger, use an automotive DC-DC/USB-C module with a dedicated fuse, mechanically secure and insulate every wire, check charging heat under extended use, and confirm the assembly cannot interfere with controls. Electrical installation remains at the installer’s risk.

Replacement clip joining a Rituals fragrance dispenser to the centre ventilation slats in a 2025 facelift V-Class. The creator printed and physically shows it installed, specifies PETG with 0.2 mm layers and 30% infill, and deliberately strengthened the design. Fitment is limited to the facelift centre vent and the matching Rituals dispenser back bars. Confirm both interfaces, insert without bending or scratching the vent slats, preserve airflow and vent adjustment, and remove the accessory if it loosens or obstructs controls or visibility.

Cupholder-mounted charging dock remixed specifically for the 2014–2022 Vito and tested with an iPhone 12 Pro Max in a thin Pitaka Air case; the creator also states iPhone 13 Pro Max fitment. It requires a small Lightning plug such as the cited 0.5 m Apple cable, with tape used to make the plug snug, and includes a cable channel to the nearby USB port. Print in PETG as recommended, match the exact phone/case/plug and cupholder, secure and route the cable safely, and verify the dock cannot obstruct controls or release the phone under braking.

Charging dock shaped for the front centre-console cupholder and an iPhone 12 in an Elago silicone case. The creator states exact Vito fitment, recommends ABS or PETG because cabin temperatures can exceed 70 °C, and notes that other cases, phones and cable plugs require geometry changes. Match the cupholder, phone case and charging connector, route the cable without pinching it, use supports as specified, and verify the dock and phone stay retained without obstructing the selector or controls.

Cosmetic plug for closing the exposed holes left after removing the armrests from individual V-Class seats. The creator explicitly tags this chassis and supplies the printable child geometry and multiple CAD source views, but gives no material, seat-version, colour or long-term retention details. PETG, ABS and nylon are listed only as conservative tough cabin-heat-resistant choices. Compare the exposed seat hole and plug profile, fit without forcing the seat trim, and confirm the plug remains secure and does not interfere with seat adjustment or restraint hardware.

Two-piece holder that slides over the central Audio 20 display and carries a 12.9-inch second-generation iPad Pro in its leather case. The creator explicitly designed it for the V-Class/Vito/Marco Polo display in this chassis and instructs bonding the two printed pieces after printing. The source gives no material; PETG, ABS and nylon are listed only as conservative cabin-heat-resistant choices. Match the Audio 20 display and tablet/case dimensions, line the vehicle-display interface with textile tape as shown on the same-author follow-up, and verify the holder cannot obscure the road, controls or airbags or release the tablet under braking.

Multi-part Gridfinity-based replacement for the center-console cupholder and storage unit, explicitly stated by the creator to fit V-Class/Vito, C-Class, E-Class sedan/estate/coupé/cabriolet applications sharing the original insert. It reuses the original double-torsion spring, adds supported cupholder clips, and uses 6×2 mm magnets. Preserve spring orientation, secure every magnet, verify each module locks in place, and keep all contents and moving parts clear of controls. The creator identifies the exact replaced cupholder unit as A2056800691, corroborated by the official Mercedes-Benz genuine-parts listing.

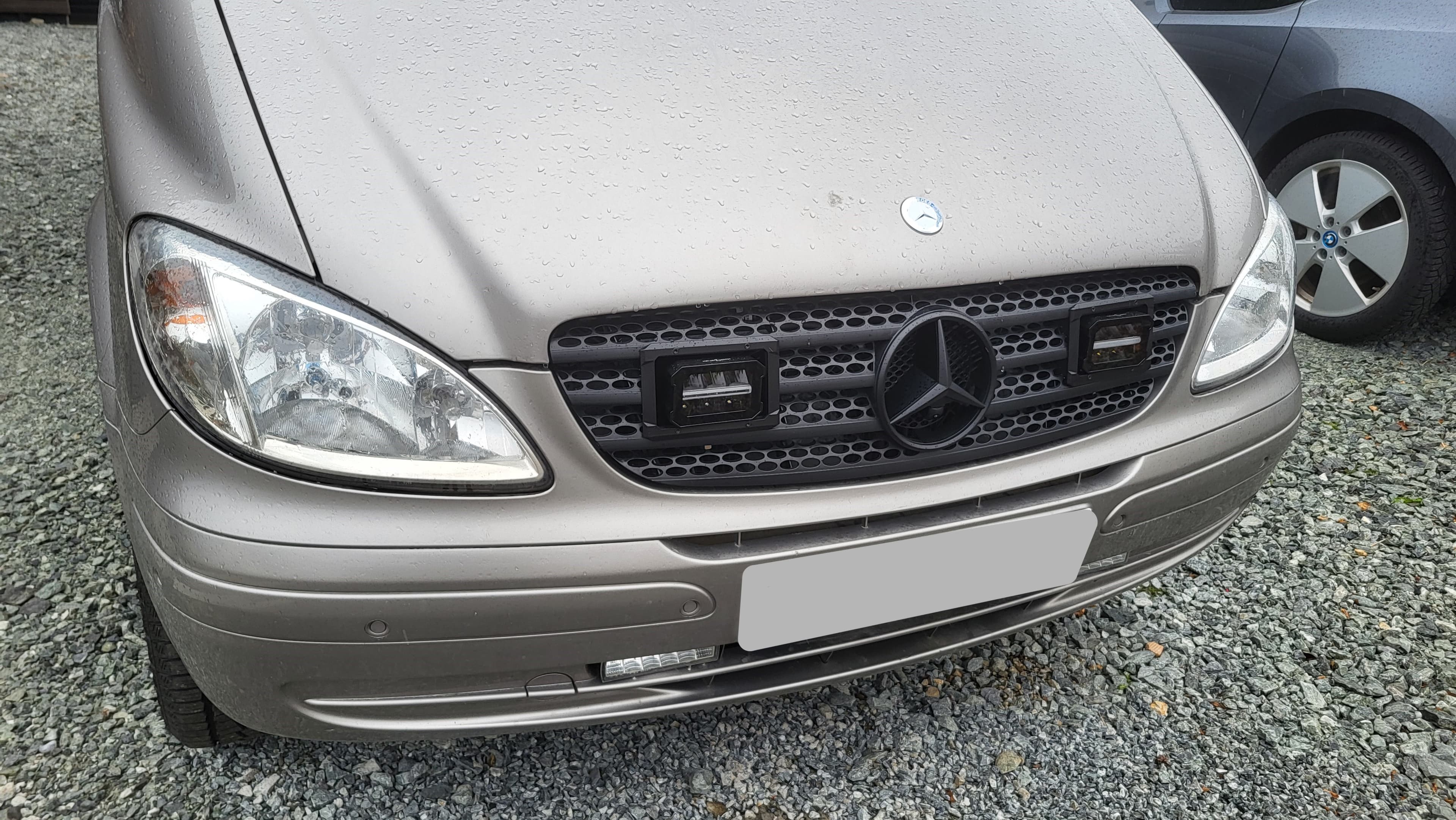

Mount set for installing the pictured auxiliary lamps in the front grille. The creator documents cutting the grille, M8 hardware, silicone bonding, bumper-lug anchoring and states that post-2013 facelift fitment is unknown; use only on verified 2003–2012 pre-facelift grille geometry. Check local lighting rules, keep cooling airflow and sensors clear, use weather- and heat-resistant material and corrosion-resistant hardware, and verify secure aim and retention before driving.

Sturdy adapter ring for fitting aftermarket speakers to the stock front-door or rear-side mounting pattern. The creator reports precise alignment with the factory screw holes and supplies installed source photographs. This is an aftermarket adapter rather than any listed speaker assembly, so no speaker OEM number is assigned. Verify speaker diameter, depth, window and trim clearance, seal against rattles and moisture, and secure wiring away from moving mechanisms.

Replacement push clip for interior trim panels, identified by the creator as the exact child and accompanied by an EPC-style source diagram. Print in tough cabin-heat-resistant material, compare head and stem dimensions with an original clip, use only in the stated non-structural trim position, and confirm the panel is secure without interfering with wiring, airbags or seat mechanisms.

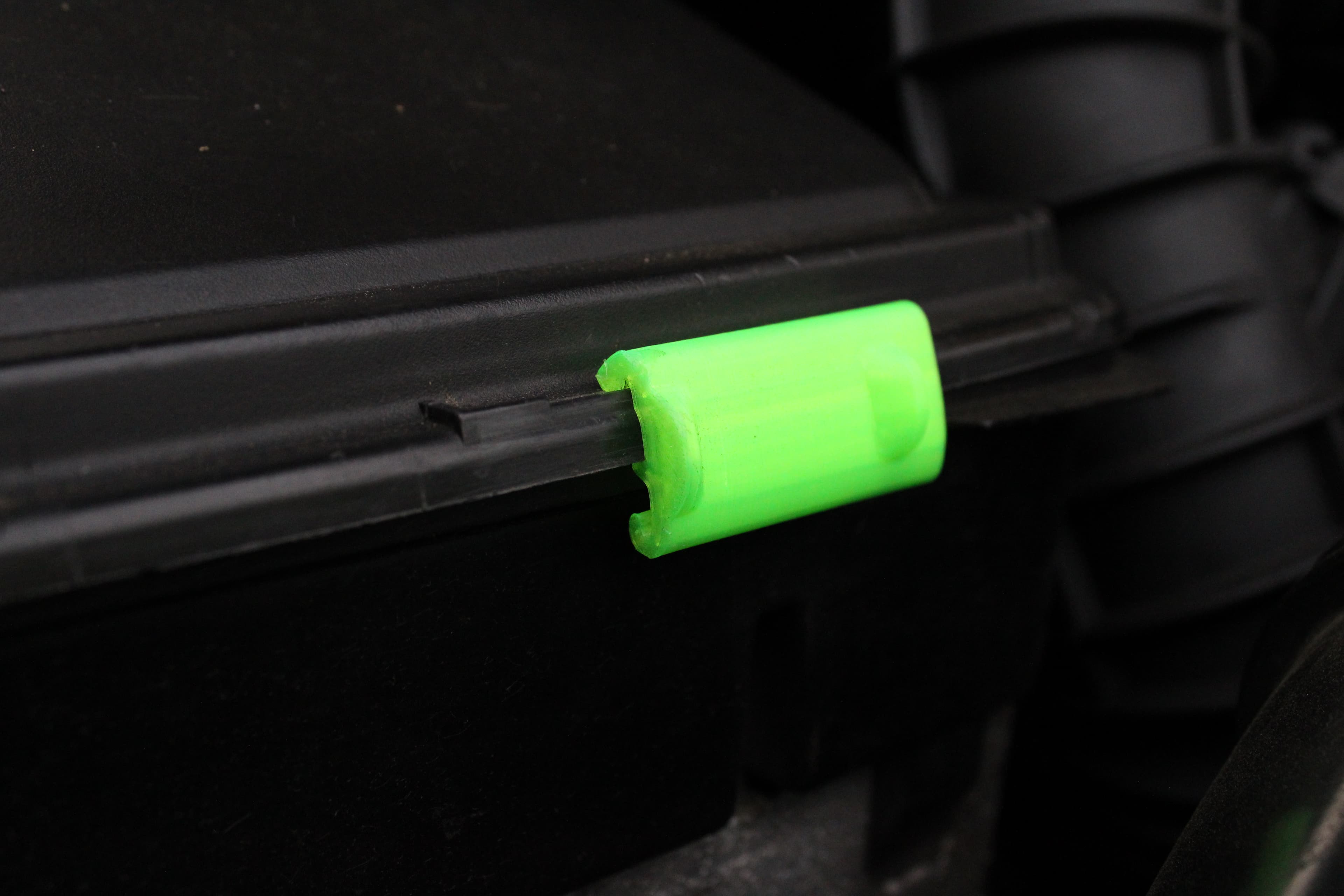

Replacement latch clip for the engine-compartment electrical fuse box, identified by the creator as the exact serviced child. Source photographs compare it with the original and show it retaining the lid. Print in engine-bay-temperature-resistant PETG, ABS or nylon, verify the box and latch version, and confirm the lid seals and remains secured without pinching wiring.

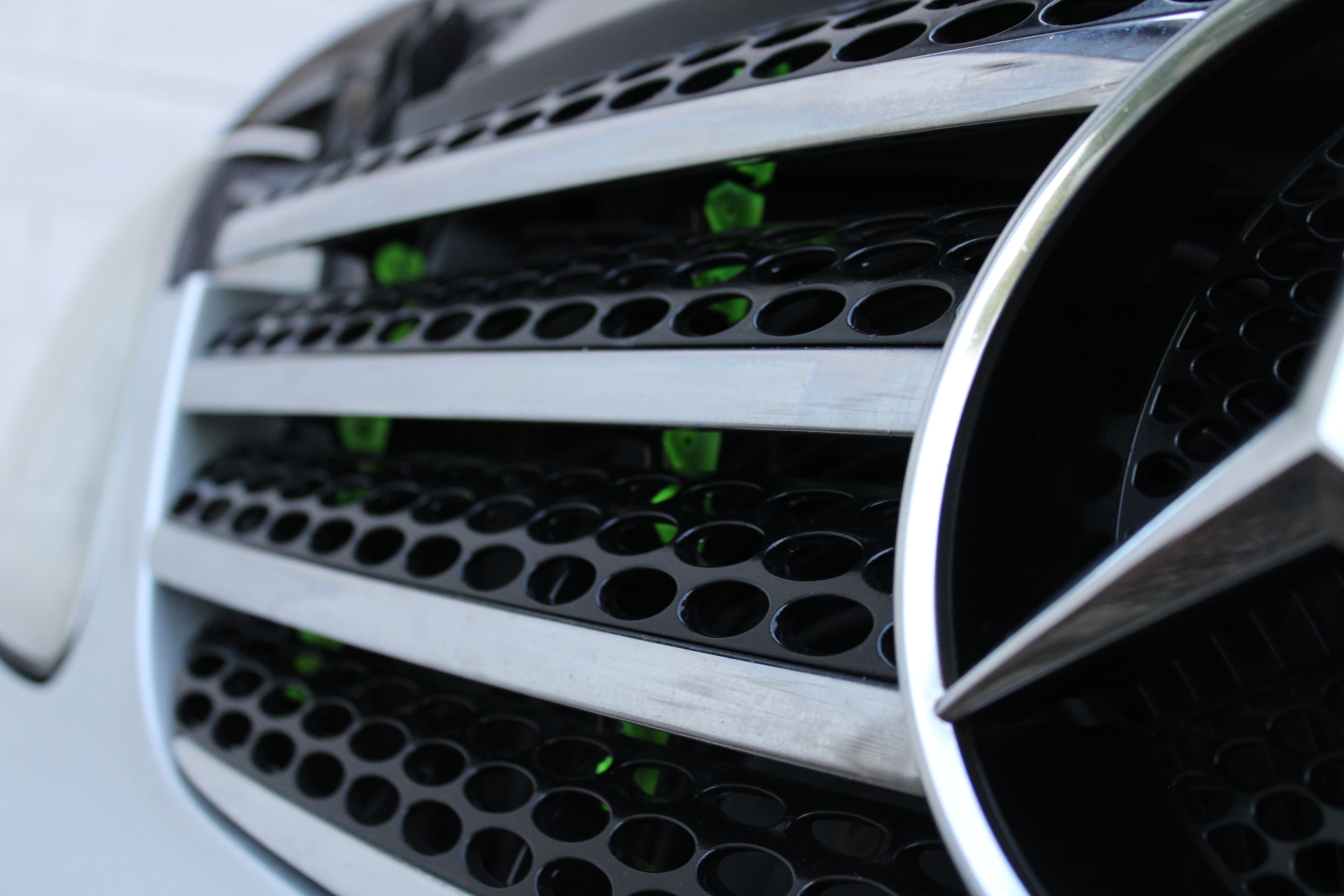

Glue-on repair tabs for broken mounting points on the front grille. The creator documents superglue installation and an optional filament pin through drilled 1.5–1.75 mm holes; photographs show the repair installed. These prints reproduce repair fragments rather than the grille assembly, so no grille OEM number is assigned. Verify the exact break, use weather- and heat-resistant material and adhesive, and confirm the grille is retained clear of cooling airflow and moving parts.

Flexible expansion dowel for the rear number-plate mounting holes, designed so scaling can compensate for enlarged corroded openings. Source photographs show the loose child and installed location. Use weather-resistant TPU, assess and repair corrosion separately, scale conservatively, use compatible screws, and confirm the plate is secure without distorting the tailgate skin.

Flexible 42 mm plug for sealing body openings in the windscreen-wiper compartment. The creator warns that rigid filament will not fit; source photographs compare printed and original plugs and show the installed locations. Print only in suitable TPU/flex, verify every opening size and drainage path, and confirm the plugs seat fully without trapping water or wiring.

Flexible protective cap for the front windscreen-wiper arm nut, print-tested by the creator in 95A TPU and shown installed. Match the spindle and arm version, use UV-, weather- and washer-fluid-resistant flexible material, seat it without contacting the moving arm, and confirm full wiper travel and retention after wet-weather operation.

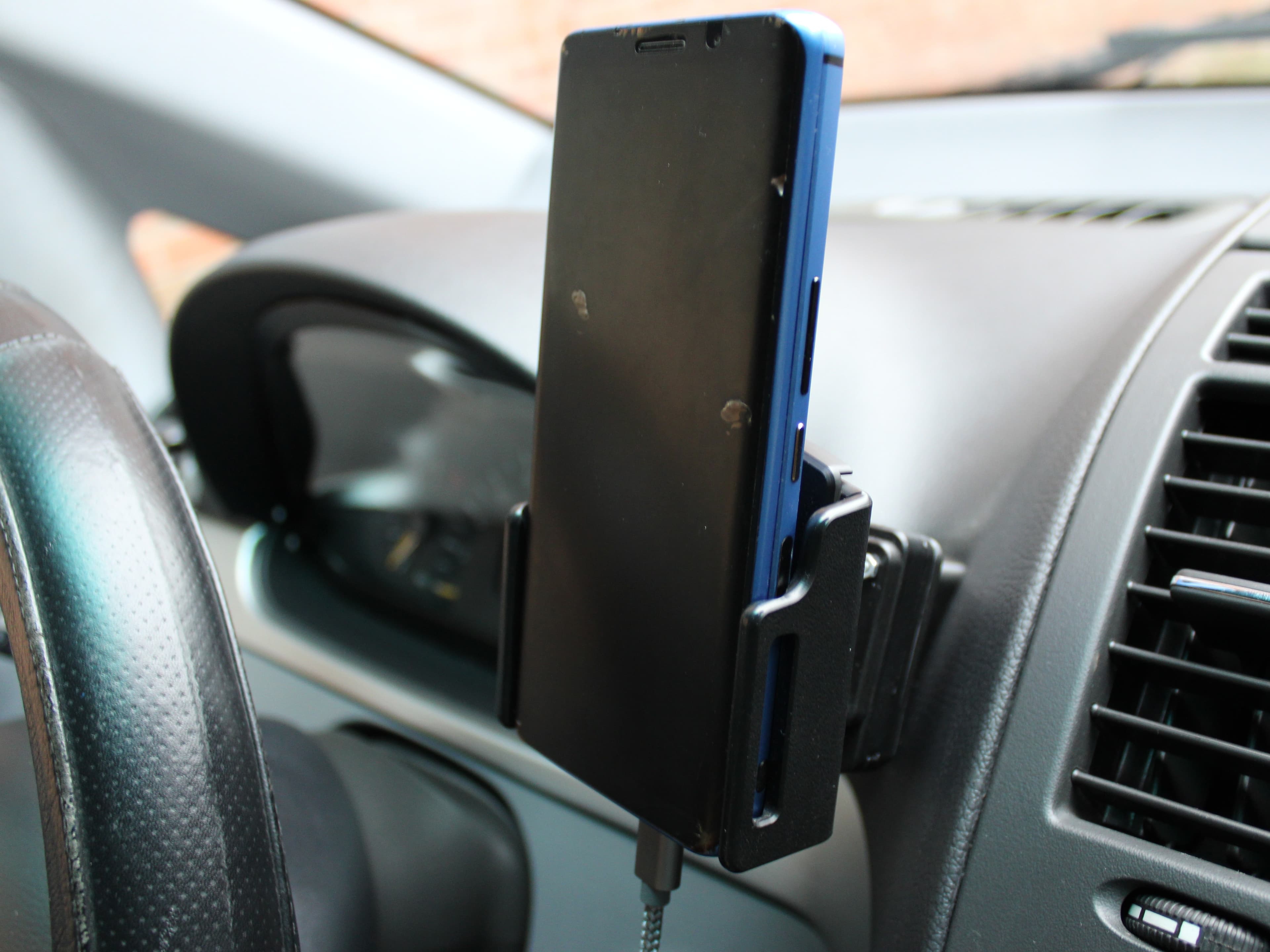

Adapter plate that replaces the obsolete factory phone cradle while reusing its original dashboard bracket and screws, with variants for a Brodit MoveClip mounting pattern and alternate screen position. Source photographs show the bracket, plate and phones installed. Match the equipped cradle and screw lengths, use cabin-heat-resistant material, and confirm the device cannot obscure instruments, controls, airbags or the driver view.

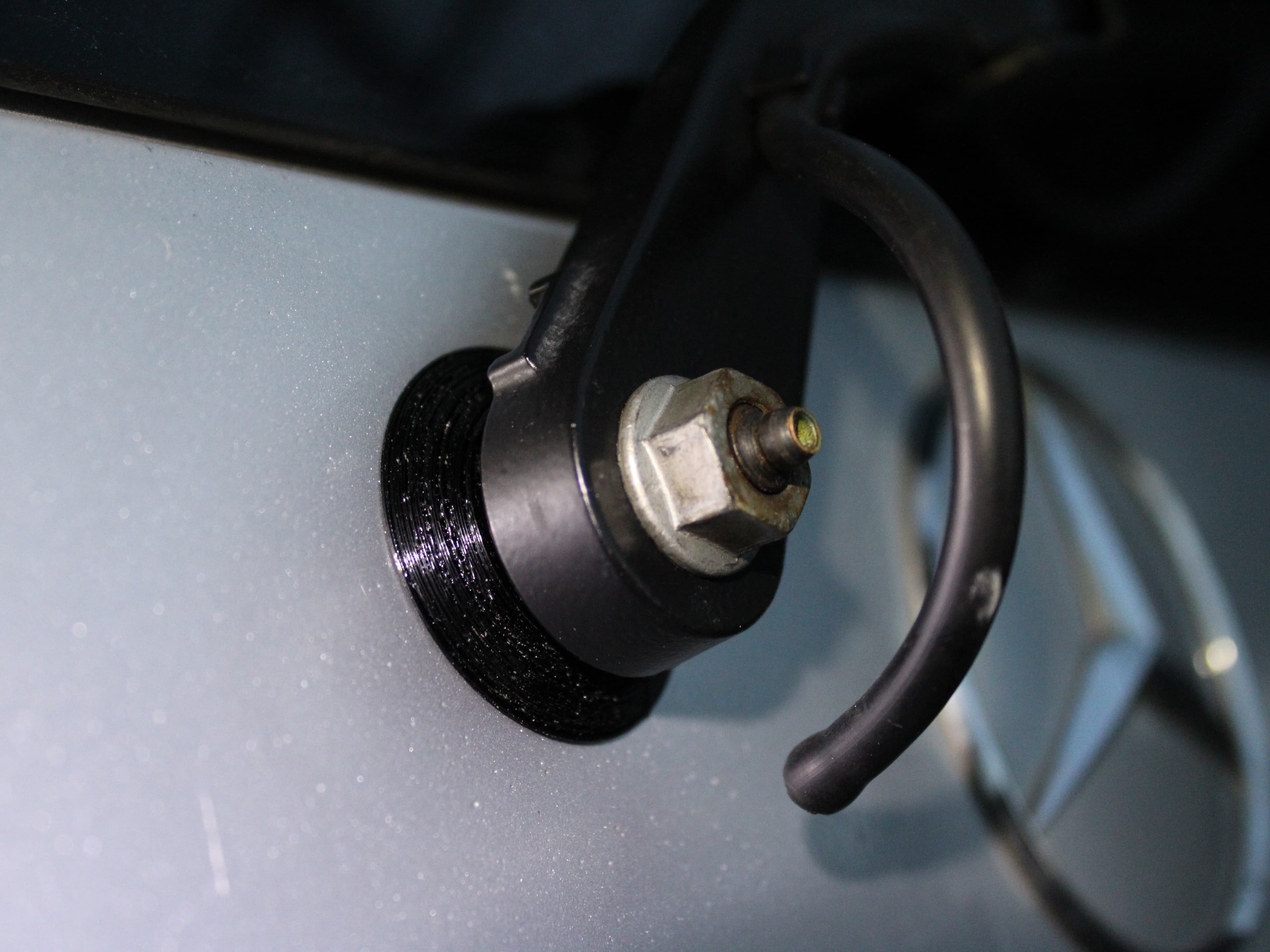

Two-piece flexible gasket for the rear-window wiper shaft. The creator explicitly describes it as a temporary fix because typical printable TPU is harder than the original rubber; installation requires removing the rear wiper motor. Use only as a temporary non-equivalent seal, match the exact shaft and glass interface, avoid loading or scratching the glass, and verify sealing, motor alignment and free wiper movement.

Flexible 74 mm replacement cap for the windscreen-washer reservoir. The creator measured the original, recommends TPU and notes that a 98% scale may improve fit; source photographs show it installed. Verify the reservoir neck diameter, print in washer-fluid-, heat- and weather-resistant flexible material, and confirm the cap seats securely without obstructing filling or venting.

Flexible replacement tether for the fuel filler cap, created after the original tether failed and shown installed on the filler door. Print in fuel-, UV- and weather-resistant flexible material, preserve the cap sealing surfaces and venting, keep the tether clear of the neck and hinge, and confirm the cap still seals and locks normally.

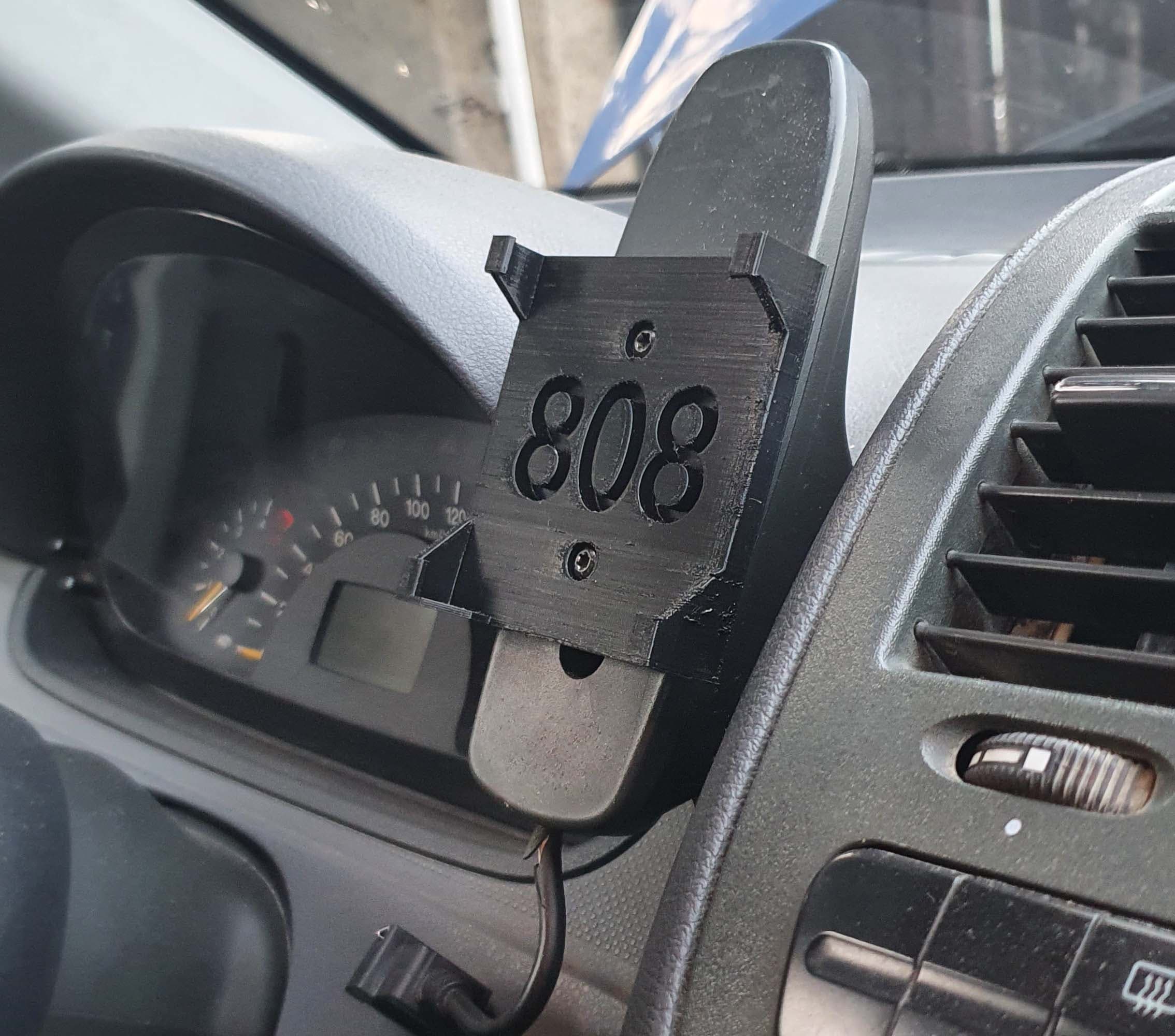

Phone holder for the factory mounting point beside the steering wheel, designed around an iPhone 6 with a silicone case. The source includes an installed photograph and author STL/OBJ geometry. Verify device dimensions and the original mounting interface, use tough cabin-heat-resistant material, and confirm the phone cannot obscure instruments, interfere with steering or airbags, or detach under braking.

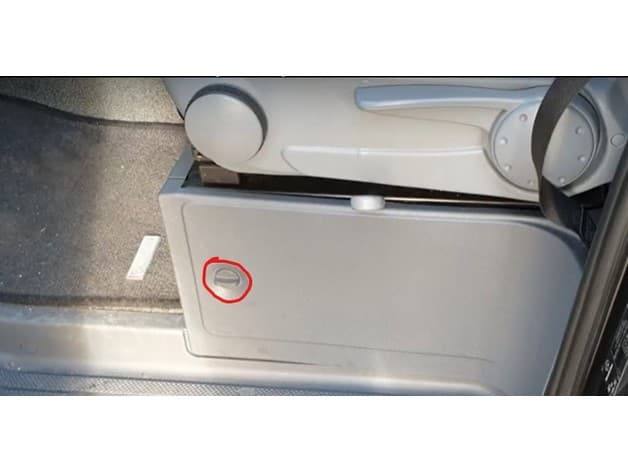

Replacement wing nut used on several battery and storage-compartment covers. Source imagery shows the installed fastener location and the loose printed geometry. Match the original thread and cover version, print in tough cabin-heat-resistant material, do not force a mismatched thread, and tighten only enough to retain the non-structural cover without cracking it.

Replacement retention clip for the bonnet support strut. The author supplies printable STL and editable STEP geometry plus a source photograph of the physical clip. Use engine-bay-temperature- and weather-resistant material, compare the strut diameter and mounting profile, and confirm the strut is retained when stowed without weakening or interfering with bonnet support or latching.

Replacement locking pin for a seat armrest, redesigned with a toothed arc and used successfully by the creator with M3 and M4 nuts and screws. Compare the original geometry and armrest version, use tough wear- and cabin-heat-resistant material, secure the hardware against loosening, and verify the armrest locks and releases repeatedly without affecting the seat or belt before driving.

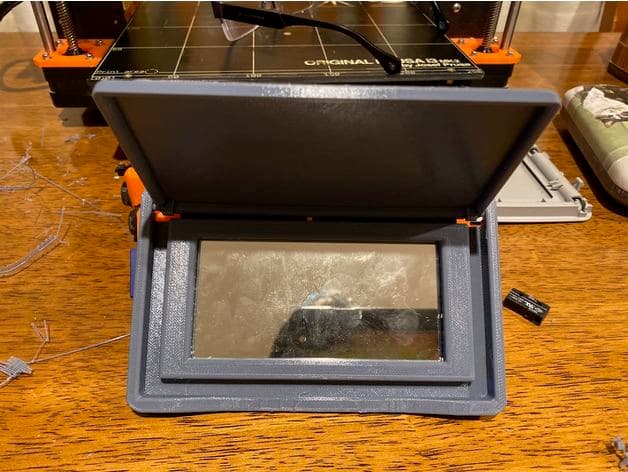

Replacement frame and cover for the vanity mirror in the sun visor. The source shows the printed frame holding a mirror insert and the supplied author geometry. Reuse only safe, intact mirror material, smooth every edge, use cabin-heat-resistant material, retain the frame without stressing the visor, and confirm the cover closes securely and cannot fall into the driver field of view.
